Within the project “Transdisciplinary and experimental study of firing structures in the western Mediterranean during Protohistory (1st millennium BC)”, the TRANSCOMB project is an experimental research programme conducted at the Ciutadella Ibèrica (Iberian Citadell) of Calafell Archaeological Site (Tarragona, Spain) (See Figure 1 and Figure 2). The main objective of the research is to deepen our knowledge of how Iron Age combustion structures worked and were used by protohistoric communities living in the western Mediterranean. Six hearths and one oven, made with mud and other materials, such as crushed pottery and pebbles, were built inside buildings and outdoors. Later, they were put to use employing diverse types of fuels, while measuring time and temperatures reached under different conditions. Diverse analyses are being applied to samples taken from the experimental combustion structures.
The TRANSCOMB project
This research project, which started in 2020 and is funded by the Spanish Ministry of Science and Innovation, is led by the Catalan Institute of Classical Archaeology (ICAC) and counts on the participation of about 20 researchers from different institutions. The project aims to analyse Iron Age combustion structures in the north-eastern Iberian Peninsula, the South of France, and the Balearic Islands (See Figure 1). The main aim is to obtain data about the functioning and efficiency of these structures during a range of domestic activities. These activities should have included lighting or heating of the spaces, in addition to food processing and cooking. Other variables explored are the fuels employed, and the management of natural resources related to them (See Figure 2).
To deepen these questions, the TRANSCOMB project was conceived as a transdisciplinary approach that included the application of diverse techniques of analysis to samples obtained from various combustion structures, both hearths and ovens, from archaeological sites in the study area and period (See Figure 3). We are applying the following techniques:

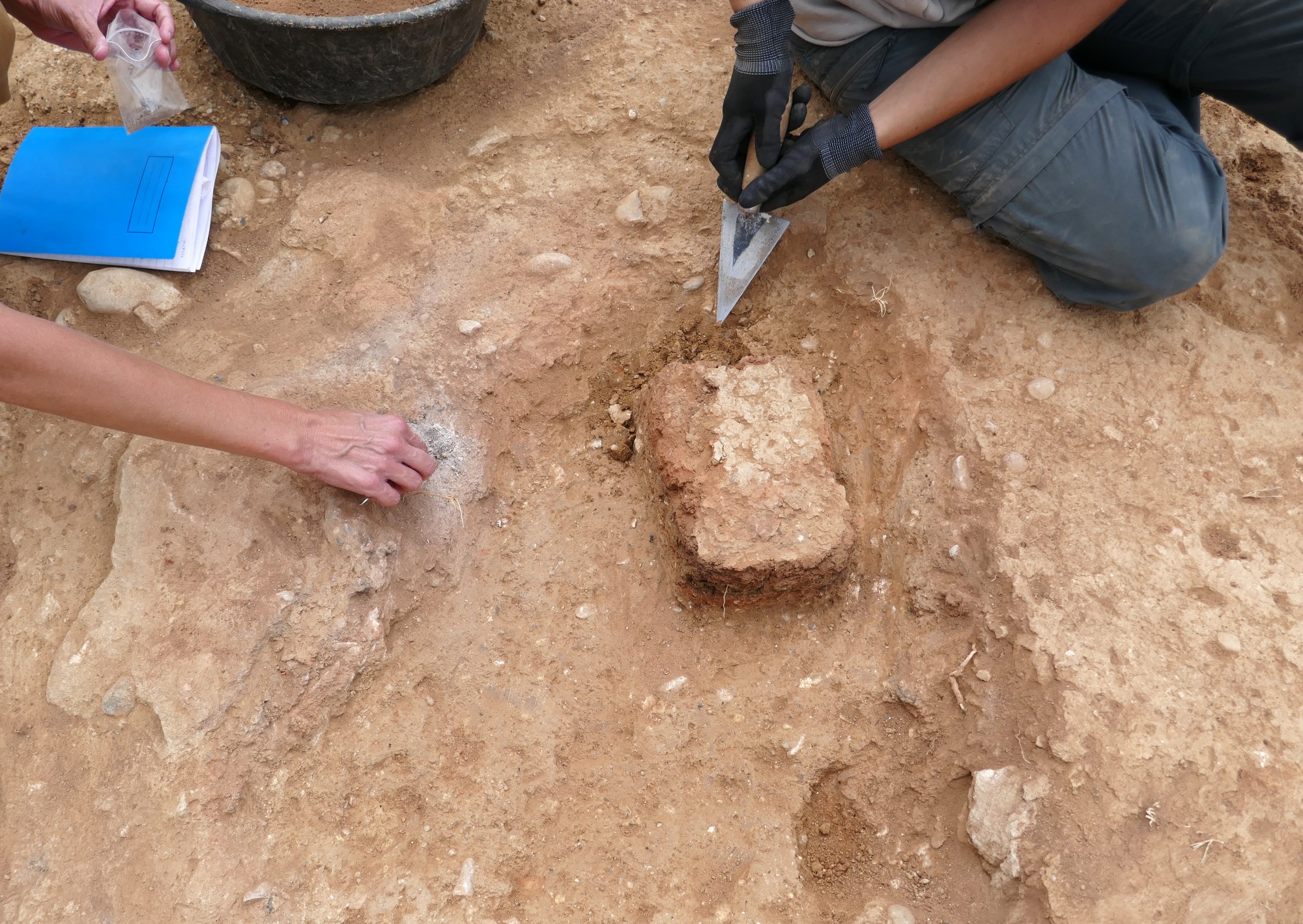

- Anthracological analyses: study of charcoal remains recovered on the firing surfaces of hearths and ovens or on pavements surrounding them; identification of genus and, if possible, species of woody plants (see Théry-Parisot et al., 2010).
- Study of phytoliths (plant silica micro-remains) and other calcitic microfossils, including faecal spherulites that form in animal guts and can be found in dung, and wood ash pseudomorphs (primarily originating from wood and dicotyledonous leaves). This may allow the distinction between woody and dung fuel remains, or mixtures of both (see Table 1 in Portillo et al., 2021).
- FTIR (Fourier transform infrared spectroscopy) is a technique based on how electromagnetic radiation from the middle infrared (number of waves between 4000-400 cm-1) interacts with materials. Berna et al. (2007) used it successfully in archaeological materials, revealing the presence or absence of thermoalteration (see also Saorin, 2018).
- Micromorphology (see Mateu et al., 2019) is the study of soils and sediments in thin sections (in micro-scale) in order to provide information on their in situ composition, formation processes and possible use.
- Chemical analyses of hearths surfaces (see Pecci, 2021). These are aimed at identifying chemical traces of ancient human activities. In the case of hearths, these analyses can help in differentiating those that were used to cook food from those that were used only to make light or heat the rooms, although the use of different kind of combustion material (i.e. dung) could also influence the results of the analyses.
- Experimental archaeology (as detailed in this article)
The types of Iron Age combustion structures

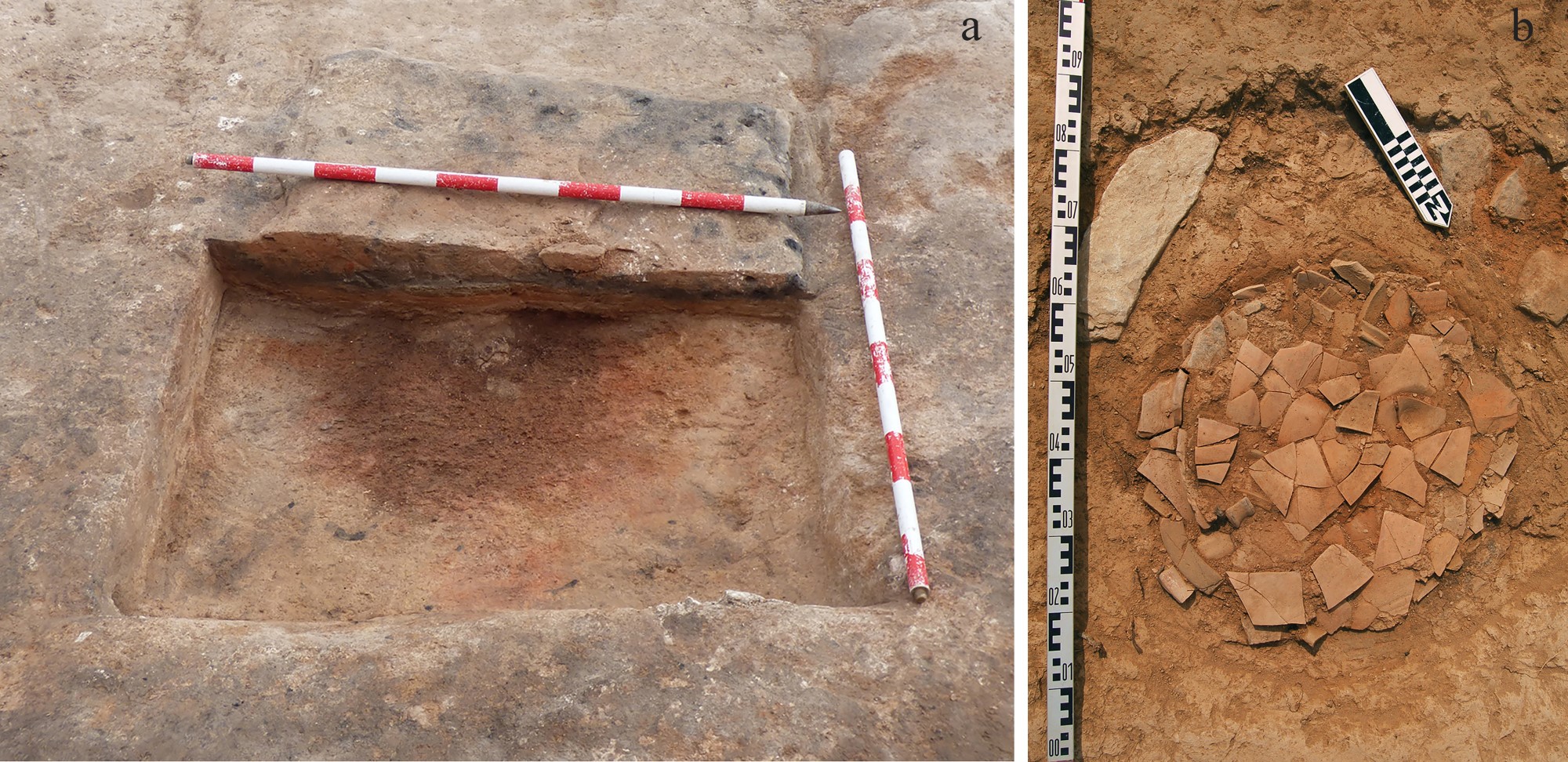

Most combustion structures known from the Iron Age in the Western Mediterranean have common characteristics, particularly the hearths, which always contain an earthen surface for firing (See Figure 4). However, there is a certain variety in the techniques and materials employed in their construction. Some hearths consist simply of an earthen surface built directly on the floor, whilst others are semi-excavated in a shallow pit. The latter can have a preparation layer composed of ceramic fragments (See Figure 4b), pebbles, or a combination of both materials, always placed under the combustion layer, made of mud (Belarte, 2021). Some combustion structures were built with a border delimiting the structure. Mud bricks were also used to build fire installations (Abad and Sala, 1993, pp. 176-177; Chazelles, 1999, p. 59).
Apart from the different materials chosen to build these domestic structures, a variability can also be observed in their morphology. Hearths can be found with a round or oval morphology (See Figure 4b), but they can also be quadrangular, rectangular (See Figure 4a), irregular or semi-circular, with different shapes even occurring on the same site. Ovens are usually elevated on a stone or an earthen plinth and have an earthen vault, although this is not easily preserved or identified in the archaeological record (Belarte et al., 2016).
There is also a certain diversity in the location of all of these combustion structures. They can be inside or outside buildings, or in the common areas of the settlements such as streets, courtyards, or corridors, as well as in a central, lateral, or corner position inside rooms.
Different characteristics, different interpretations
These differences are usually interpreted as resulting from a functional diversity of the structures. Particularly, the presence of a preparation layer (in which pebbles or reused sherds of broken pots are employed) is supposed to improve the efficiency of the hearths, allowing them to reach higher temperatures or keep the heat for a longer period. Obviously, other variables, such as their location (indoors vs. outdoors) or the fuels chosen, must have played an important role in this respect. As we have no proof of chimneys or other ventilation systems in protohistoric houses, one often accepted assumption is that the fire was not lit inside the buildings but outdoors, with the embers being moved to a hearth located indoors, for food processing, cooking, or keeping the spaces warm. Combustion structures were built for these daily uses, but some of them were also employed in pyrotechnological manufacture of goods: ceramics, metal (Martín et al., 1999, p. 60, fig. 6.10; González and Ruiz, 2000, pp. 27-28; Guérin, 2003, pp. 18-19; Bonet and Vives-Ferrándiz, 2011, p. 152; Prados et al., 2018, p. 88), as well as other fire-transformed products such as lime and gypsum plaster (e.g. Sanmartí and Santacana, 1992, p. 71; Abad and Sala, 2001, p. 100). Some combustion structures would also have had ritual functions (Bonet and Mata, 2002, p. 39; Guérin, 2003, pp. 17-18; Lorrio et al., 2017, p. 94). Finally, firing installations created for a specific purpose can also be reused for different activities. Further insights into domestic combustion installations and fuel use come from ethnoarchaeological research (e.g. Zapata et al., 2003; Portillo et al., 2017).
The experimental approach
A key part of the TRANSCOMB project involves experimenting with replicas of Iron Age combustion structures for comparative purposes. Although similar works have been carried out and published on occasion for other areas, such as Italy during Later Prehistory (Cattani et al., 2015; Peinetti et al., 2019) or Ancient Egypt (Budka et al., 2019), the use of domestic structures built for combustion purposes during prehistory and protohistory is a topic with a lot of unanswered questions.
Description of the experiments

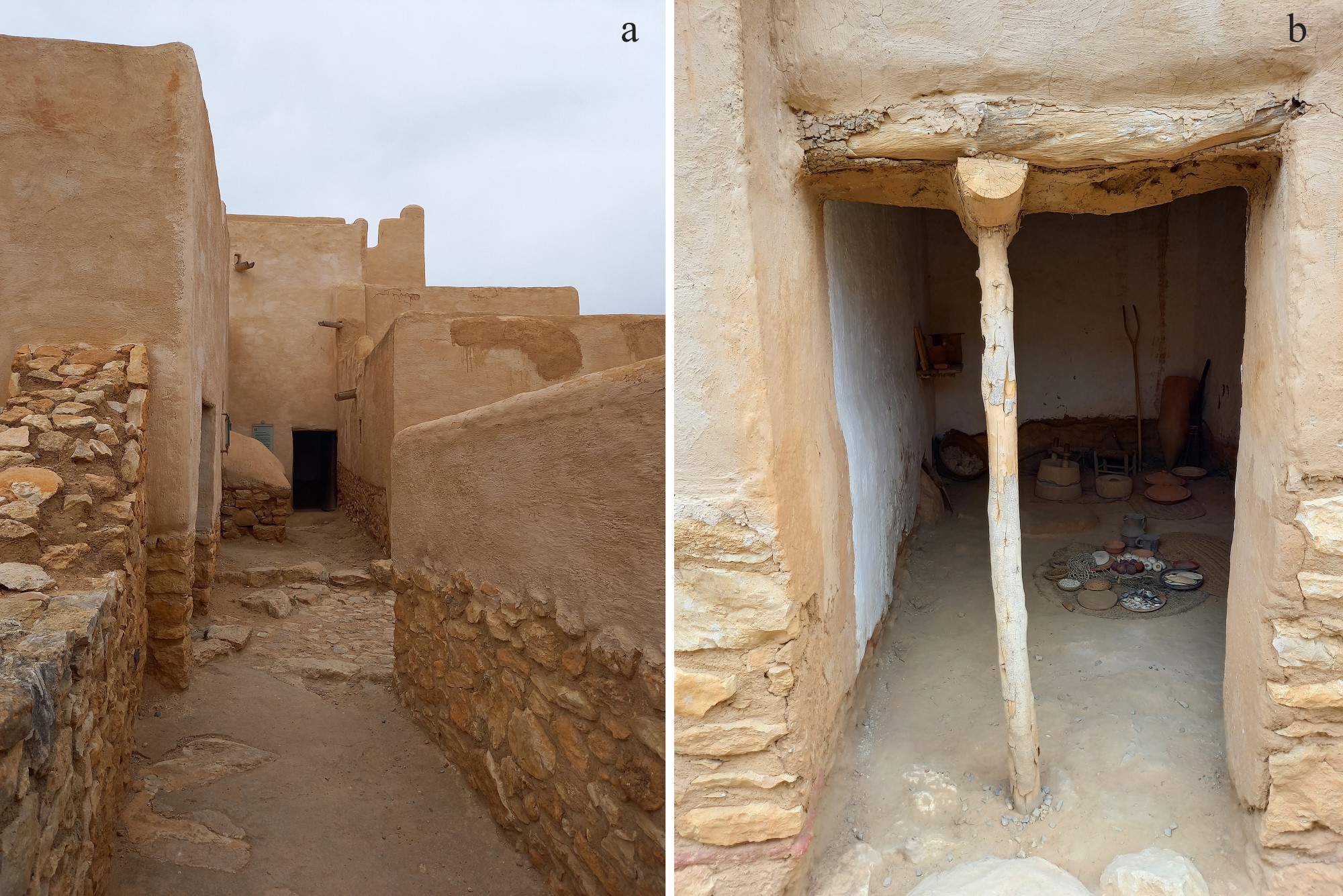

The experimentation works are being carried out since 2021 at the Iberian Citadel of Calafell, in the coastal town of the same name located in the province of Tarragona, in Spain (See Figure 2). This is a reconstructed Iron Age site, dating from the sixth to the first centuries BC (Pou et al., 2001) (See Figure 5) that is also an experimental archaeology centre and an Open-air Museum member of EXARC since 2007 (See https://exarc.net/members/venues/ciutadella-iberica-es)

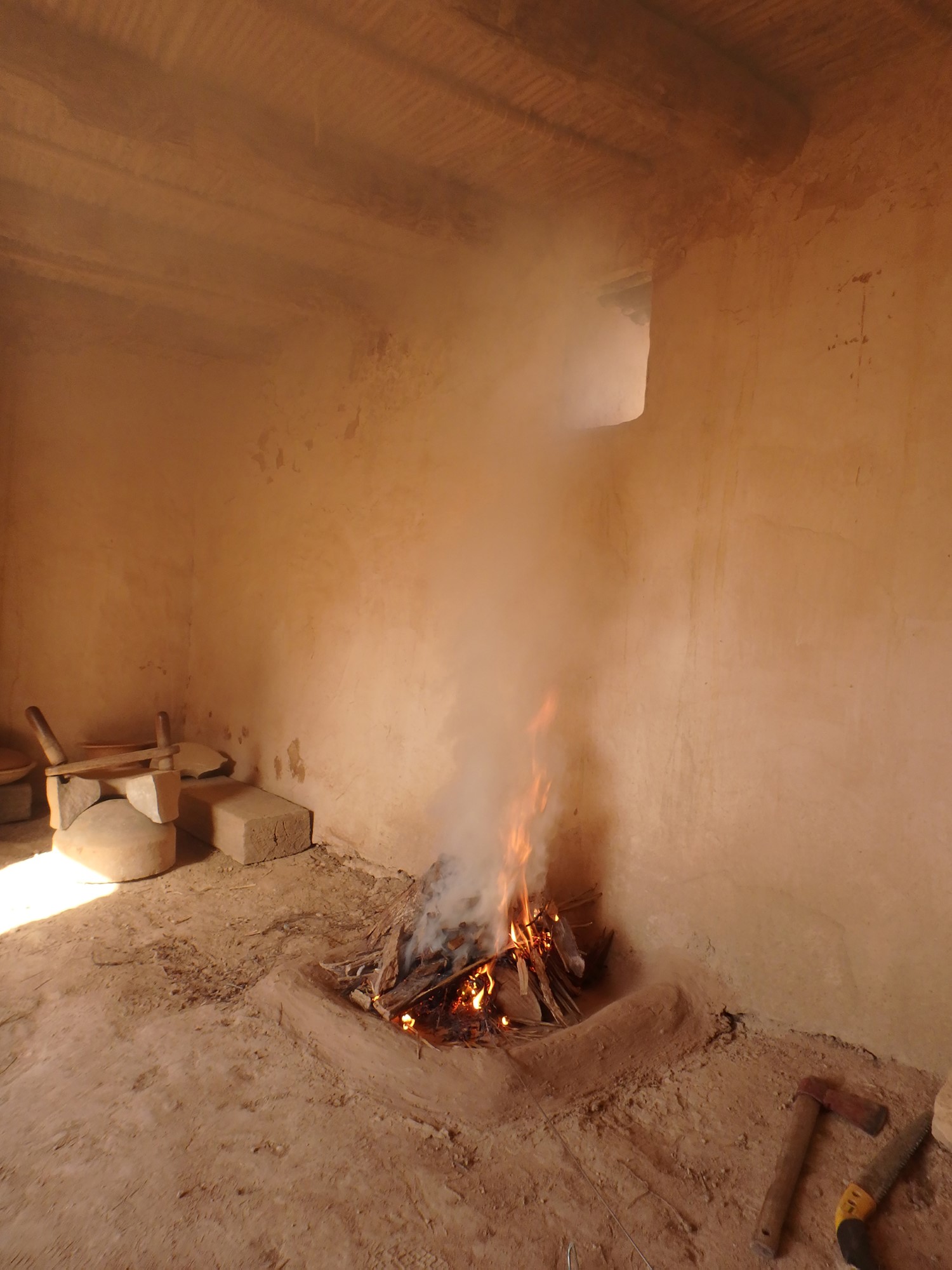

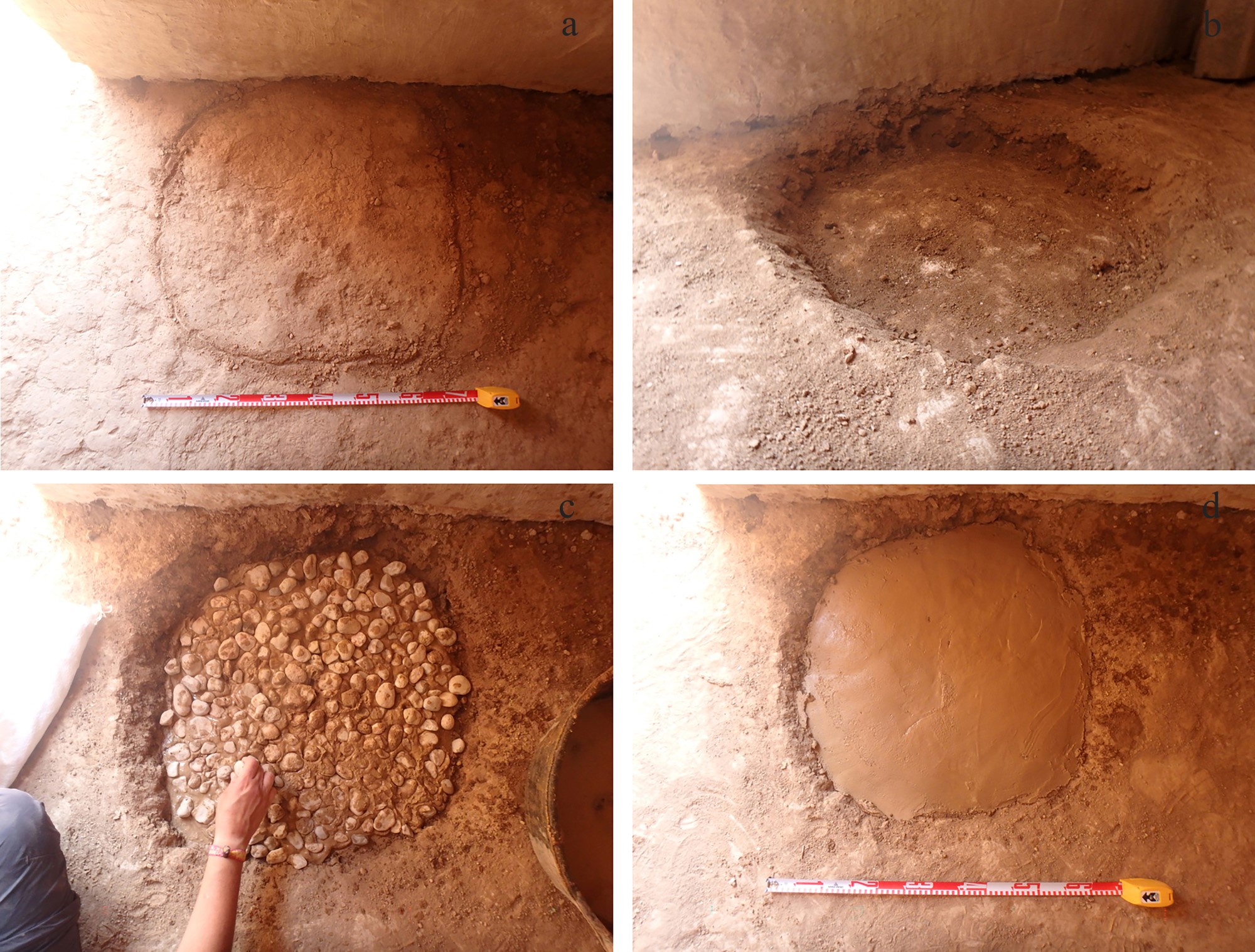

The experimental archaeology program began with the construction of six hearths and an oven (See Table 1), located in both outdoor and indoor spaces. Hearths were of different types and locations, according to archaeological data coming from different sites (Belarte, 2021, pp. 258-259). Indoor structures were as follows:
- One quadrangular hearth, much bigger than the other hearths, with a thick mud border (20 cm width and 11 cm high), mud bricks inside (ten complete blocks of about 28 x 13.5 x 10 cm and some fragments), composing an elevated platform covered by mud mortar. The interior area of the structure measured 55 x 80 cm (116 x 120 cm if we count the border) (Hearth 1, see Figure 9)
- One semi-excavated quadrangular hearth of about 50 x 50 cm, attached to the wall and under a small opening, with a preparation layer of sherds and an earthen border with vegetal temper, of 6-7 cm high (Hearth 2, see Figures 1 and 10b)
- One oval hearth with a preparation layer of pebbles, measuring 63 x 57 cm in plan, next to the door (Hearth 3 (See Figure 6)
- One hearth in the centre of another room, elevated, of an almost trapezoidal plan, border of mud and both a pebble and a sherd preparation layer (Hearth 6). Its internal dimensions are 45 x 31 cm; total measures including the border are 63 x 51 cm. The border has a width of 9 cm; it is 6-8 cm high.
On the other hand, outdoors structures are as follows:
- An oval hearth with a flat earthen surface attached to a low wall (Hearth 4, see Figure 8a), measuring 80 x 60 cm, and
- A hearth with a rectangular structure of 72 x 52 cm, also only earthen made, but semi-excavated (Hearth 5, see Figure 8b and 10a).
All these firing structures (both indoors and outdoors) had an earthen combustion surface.

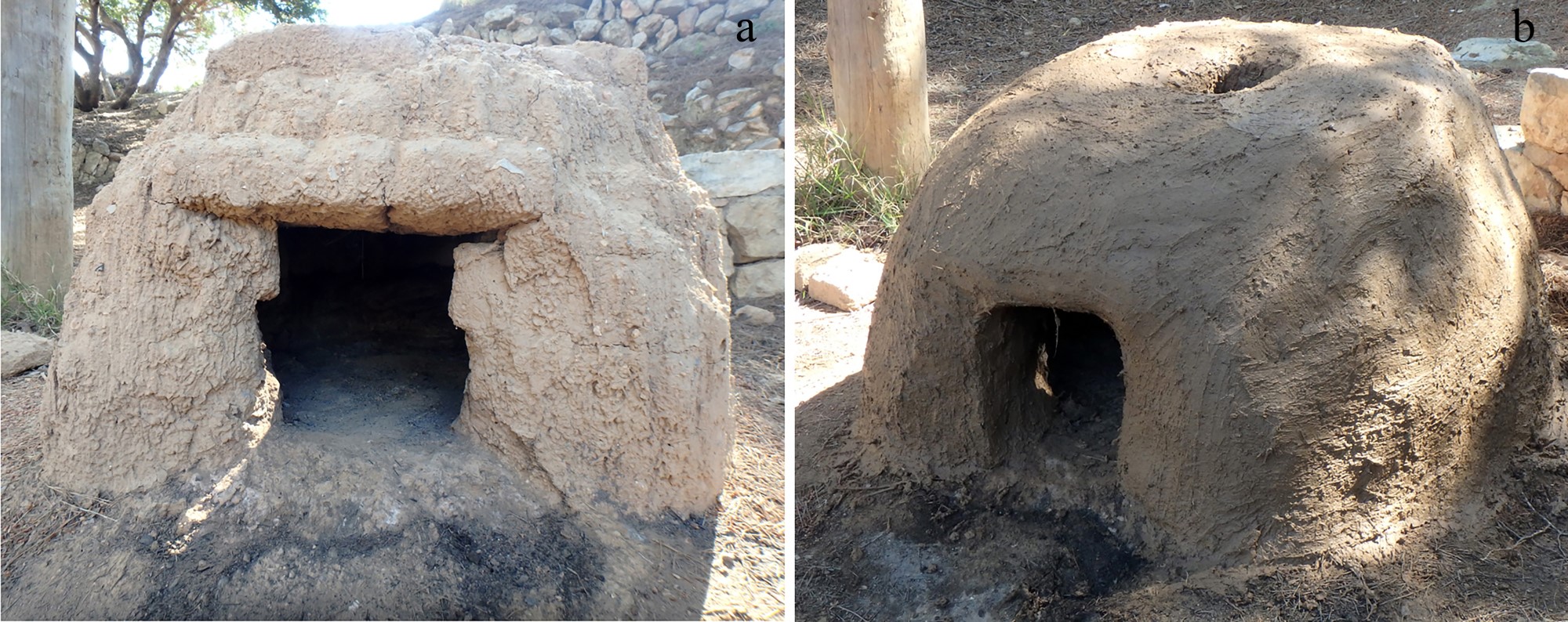

The oven is a mud-brick, outdoor, vaulted structure of oval plan (with diameter between 1m and 1,15 m, and a total high of 60 cm), plastered with earth (See Figure 7), with two openings: one a frontal oven door, the other on the top.
|Combustion structures||Building conditions||Measures||Shape||Features||Preparation layer||Location||Fig. in the text|
|Hearth 1||Rebuilt from a previous replica of an archaeological structure||116 x 120 cm||Quadrangular||Already had an earthen border of 20 x 11 cm. Mudbrick infill||Mudbrick infill||Indoors||Figure 9|
|Hearth 2||Built from scratch||50 x 50 cm||Quadrangular||Excavated in a shallow pit of 6-7 cm in depth. Earthen border with vegetal temper (barley straw)||Ceramic sherds||Indoors||Figures 2, 10b|
|Hearth 3||Built from scratch||63 x 57 cm||Oval||Excavated in a shallow pit of 8 cm in depth||Pebbles||Indoors||Figures 6, 10c|
|Hearth 4||Built from scratch||80 x 60 cm||Oval||Directly on the ground, earthen layer of 1.5 cm||None||Outdoors||Figures 8a, 10d|
|Hearth 5||Built from scratch||72 x 52 cm||Rectangular||Excavated in a shallow pit of 7 to 15 cm in depth||None||Outdoors||Figures 8b , 10a|
|Hearth 6||Rebuilt from a previous replica of an archaeological structure||63 x 51 cm||Quadrangular||Already had an earthen border of 6-8 x 9 cm||Pebbles and ceramic sherds||Indoors||-|
|Oven||Rebuilt from a previous replica of an archaeological structure||150 x 60 cm||Oval ground plan, vaulted||Mudbrick structure, covered with mud mixed with vegetal temper (Barley straw)||None||Outdoors||Figure 7|
Table 1. Combustion structures and their characteristics used in the experimental archaeology part of the TRANSCOMB project.
The objective of the construction of these replicas was to determine if there was a correlation between the typology of the structure and different variables such as the temperatures reached or the duration of the heat, as well as to compare if any changes were detected when different fuels were used. We repeated the firing of the hearths numerous times during this first stage of the project. Although we had already obtained data with the first combustions, we were interested in comparing the efficiency and duration of the fire and temperatures reached with the different fuels. We also wanted to evaluate the alterations of the microstructure of the hearths after several combustions. The project is still continuing and this will allow us to have better quality data to compare with that obtained from the analyses of archaeological hearths.
The building and preparation of the structures were carried out during two working days at the beginning of May 2021. The first fire testing of the structures took place in mid-June and lasted five days, followed by a second testing of five days conducted in the middle of November. Before lighting the structures, samples of the earth layer were recovered in all cases for infrared spectroscopy and also as controls for other analyses (microfossil, chemical analyses). Experimental firing included the use of various fuel types (mainly oak and pine wood, pine cones, barley straw and weeds, wild grasses, and palm leaves, in addition to sheep and cow dung) (See Figure 8 and Table 2), based on the available archaeobotanical records obtained through previous analyses of archaeological combustion structures in the study area (wood charcoal and plant and faecal microfossils). For each combustion, the total amount of each fuel material was weighed.
We boiled water as well as cooked different products (legumes, animal bones) in replicas of hand-made Iron Age cooking pottery, expressly produced for the experimental program. We expected that preparing meals would leave traces of organic substances that could be identified through the analysis of chemical residues of samples of experimental hearths and pavements. Results of these analyses could serve as comparative reference material for the study of archaeological structures.
|Fire structure||Comb. nº||Fuel||Weight of fuel (g)||Duration of the combustion||Highest Temperature On combustion surface / In the flames||Weight of ash + charcoal remains (ChR) (g)||Date|
|Hearth 1||1st||Wood, palm leaves, straw, grasses||12.481||8h||598°C / 756°C||294 + 1.532||16/06/2021|
|2nd||Oak wood, pine cones||11.380||more than 7h||684°C / 785°C||No records||18/06/2021|
|Hearth 2||1st||Oak wood, branches, palm leaves, pine cones||6.923||more than 9h||523°C / 805°C||374 + ChR||15/06/2021|
|2nd||Cow dung, pine branches, straw||10.004||more than 9h30min||379°C / 372°C||305||16/06/2021|
|3rd||Cow dung, pine branches, barley straw||2.550||5h15 min||330°C / 756°C||762||10/11/2021|
|4th||Oak wood, pine and oak branches, pine cones, straw||8.585||more than 18h||717°C / 780°C||317||11/11/2021|
|5th||Cow dung, straw||1.030||6h||477ºC / 788ºC||534||12/11/2021|
|Hearth 3||1st||Oak wood, pine branches, pine cones, palm leaves||7.806||more than 8h30min||450°C / 779°C||374 + ChR||16/06/2021|
|2nd||Sheep dung, pine branches, straw, palm leaves||3.845||more than 8h30min||295°C / 706°C||1474||17/06/2021|
|Hearth 4||1st||Oak wood, pine branches, straw||10.505||6h||572°C / 754°C||360 + ChR||14/06/2021|
|2nd||Oak wood, pine branches, pine cone, straw||5.984||1h15min||754°C / 805°C||140 + 970||15/06/2021|
|3rd||Sheep dung, pine branches, straw||2.632||2h15min||522°C / 660°C||211 + ChR||16/06/2021|
|4th||Oak wood, pine branches, pine cones, straw||12.285||more than 12h||759°C / 817°C||211||17/06/2021|
|5th||Oak wood||No records||No records||No records||No records||17/06/2021|
|6th||Cow dung, pine branches, pine cones, straw||1.780||5h30min?||404°C / 656°C||603||09/11/2021|
|7th||Oak wood, branches, straw||2.175||more than 6h30min||579°C / 745°C||126 + 280||12/11/2021|
|Hearth 5||1st||Oak wood, palm leaves, grass||5.908||2h15min||550°C / 686°C||385 + ChR||14/06/2021|
|2nd||Oak wood, pine cones, palm leaves, grass||7.403||2h40min||759°C / 758°C||575 + ChR||15/06/2021|
|3rd||Cow dung, pine wood, pine cones, grass||2.160||5h45min||458°C / 725°C||484 + ChR||16/06/2021|
|4th||Oak wood, palm leaves, straw||2.476||more than 12h||139°C / 507°C||720 (ash + quercus fragm.)||09/11/2021|
|Hearth 6||1st||Embers, wood||211 + 2 wood fragm.||more than 3h||437°C / 828°C||455 + ChR||17/06/2021|
|Oven||1st||Oak wood, branches, pine cones||7.788||7h||887°C / 856°C||No records||17/06/2021|
|2nd||Oak wood, branches, pine cones||16.653||7h30min||490°C / 85°C||No records||18/06/2021|
|3rd||Oak wood, pine cones, pine branches, straw||7.765||more than 12h||761°C / 800°C||660 + ChR||10/11/2021|
|4th||Sheep dung, branches, pine cones, straw||4.479||8h||326°C / 684°C||664 + 2.857||11/11/2021|
Table 2. Summary of the experimental combustions, with fuel, duration of the combustion, maximum temperatures reached, and date. This last variable is important to compare the fuel behaviour in different weather conditions (Elaborated by the authors).
Most of the structures were exposed to several complete combustions, changing the fuels employed from one to another (See Table 2). During the firing period in June, we achieved 17 complete combustions, and we included eight new combustions in November. This produced the following results:
- seven combustions in Hearth 4
- five combustions in Hearth 2
- five combustions in Hearth 4
- five combustions in the Oven
- two combustions in Hearths 1 and 3
- one combustion in Hearth 6
All them were aimed at comparing the functioning of these structures within different climatic conditions, as well as to increase the data collection through new firing episodes.

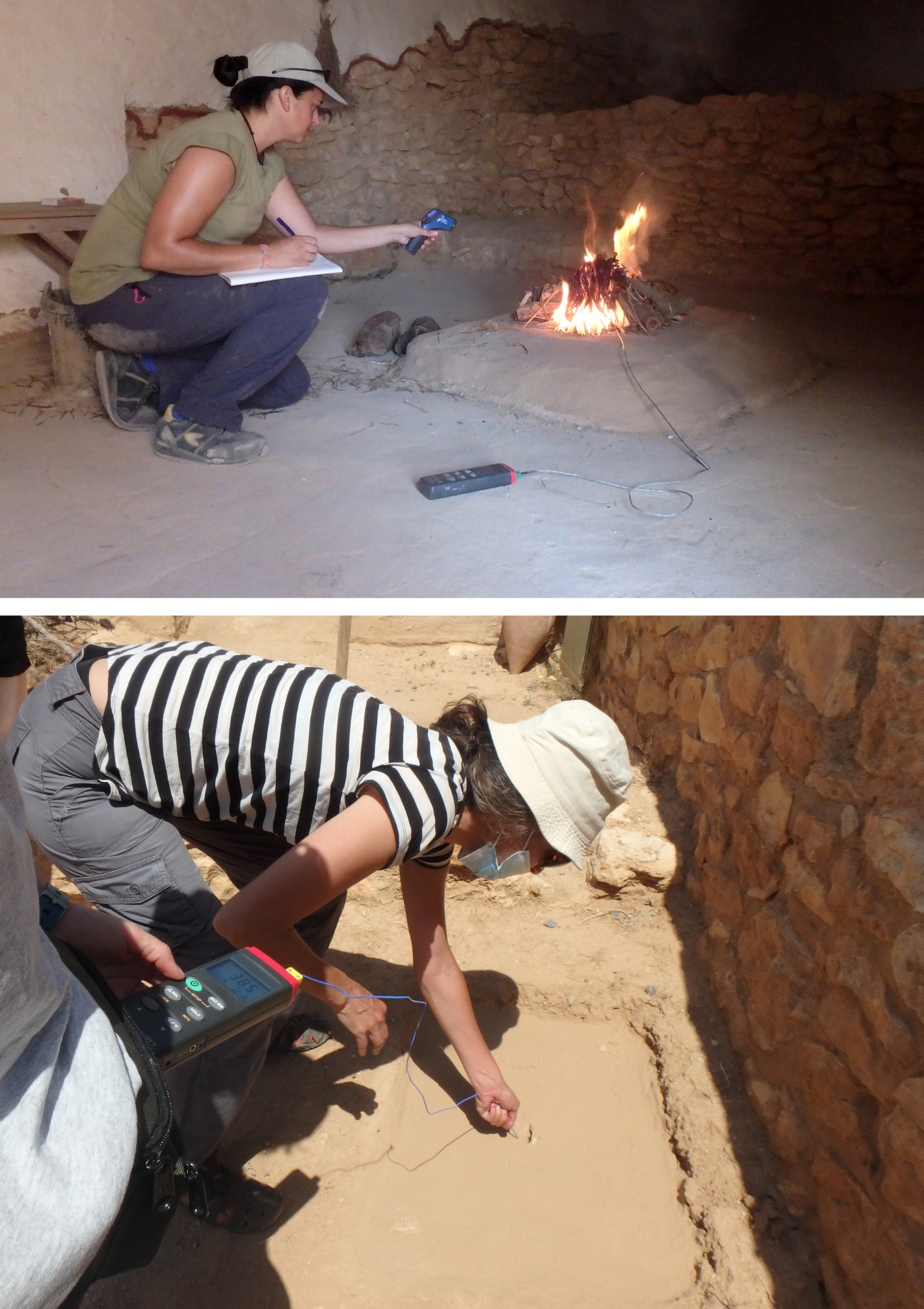

The methodology of data recording was the same for all the firings. Time and temperature measurements along with firing activities, occurring between the initial fire lighting and the end of the combustion were recorded using two different types of portable thermometers (See Figure 9a). We used three K-type thermocouple pyrometers1 with a detector placed within the burning fuel, to measure the temperature of the combustion surface (See Figure 9b). These pyrometers automatically record the temperatures at predetermined regular intervals. We programmed the pyrometer to record data every two minutes since the moment of the lighting and until the temperature was stabilised; then we reprogrammed the measurements to record temperatures every ten minutes. Simultaneously, we also employed two infrared pyrometers2 to measure specific points within the flames and later the embers (looking for the highest temperature), in addition to the temperature of the oven walls, the surface of ceramic pots, and lids and the contents. The intervals between the measurements have been the same as with the K-type ones.

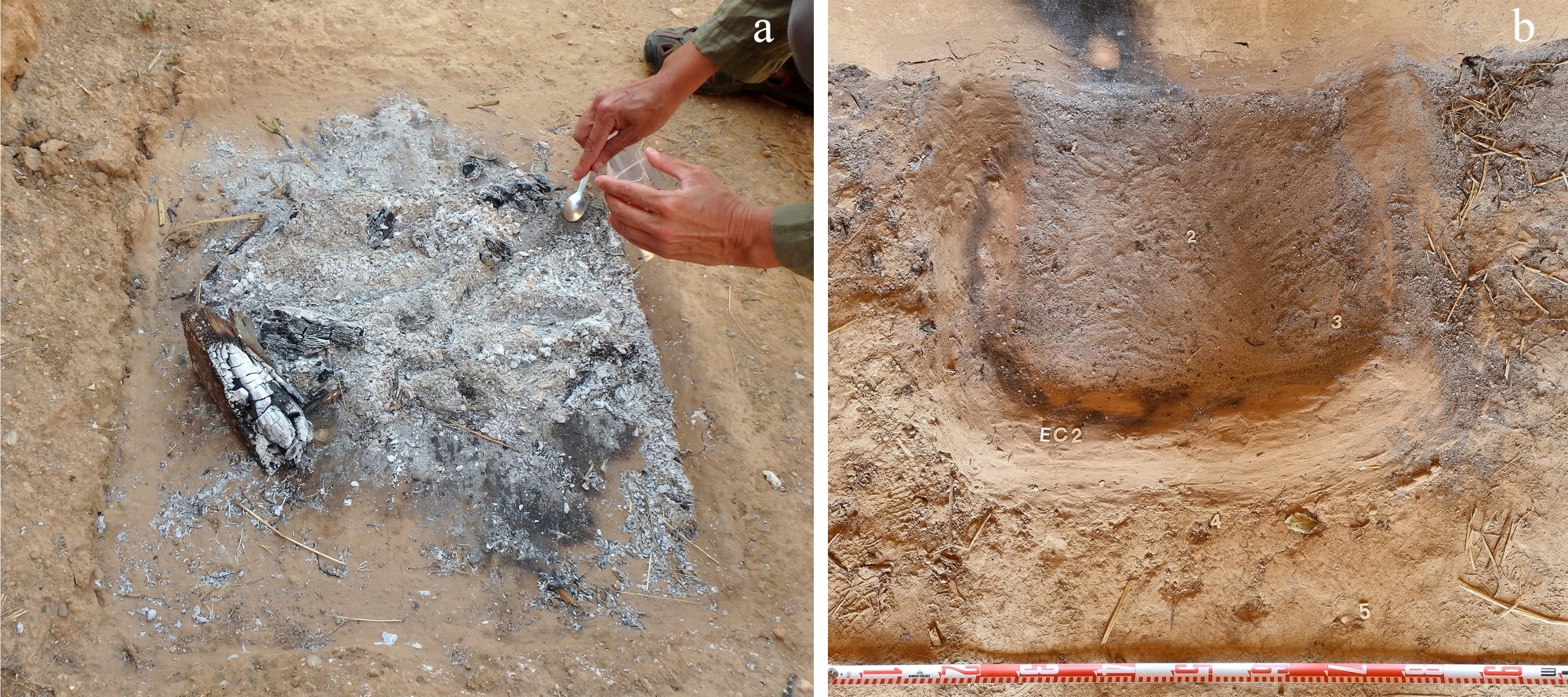

After each combustion, the fuel remains (both ashes and charcoal, in addition to partially burned plant and dung remains) were weighted and collected for integrated macrobotanical and microfossil analyses (See Figure 10a). Also, the systematic collection of samples for infrared spectroscopy (See Figure 10b) and biochemistry (See Figure 10d), and the extraction of blocks of the structures for thin section micromorphology (See Figure 10c) were carried out. After the samplings, the hearths have been repaired with a new layer of mud. They are thus ready for new experiments.
Overall, this represents initial experimental records which provide an orientation for future research, and better interpretation of the archaeological data and taphonomical issues. Nevertheless, several considerations can be advanced:
All the structures have turned out to be functionally efficient, independent of the construction technique, fuel type and location. Hearths of different typologies and with different locations (indoors/outdoors) keep the necessary heat to maintain a pot with boiling water (and food in it) for a long period (at least six hours). In some cases, it was necessary to add fuel in order to heat the water over 100 ºC. Once the water was boiling, the temperature was usually stable for hours, but occasionally some fuel additions were needed. The total amount of fuel necessary to boil water for six hours varied from one hearth to another, ranging from 7 to 12 kg and combining different materials as fuels.
Thermo-alteration in the firing surface of each structure was visible after the first combustion, and their central area becomes reddish or grey-black. After each combustion, these changes of colour of the earthen firing surface were more visible (See Figure 10).
The differences of the construction technique, and more particularly the preparation layer under the combustion surface, do not result in gaining higher temperatures or keeping it for a longer period.
The location of the hearth and the air circulation are key points in fire lighting and management. In outdoor structures, fire should not be directly exposed to air streams that could make it unstable. In indoor fire installations, the existence of an aperture such a small window over the fire can function as a flue and help to evacuate the smoke; however, a side aperture (e.g. an open door) may provoke an increase of the smoke inside the room. Two hearths were lit inside a house, one under a window and the other next to the open door. The lighting of the first one produced smoke during the first minutes, then the smoke left easily through the window. On the contrary, in the second case the air stream between the open door and the window provoked much more smoke, and it did not evacuate through the window.

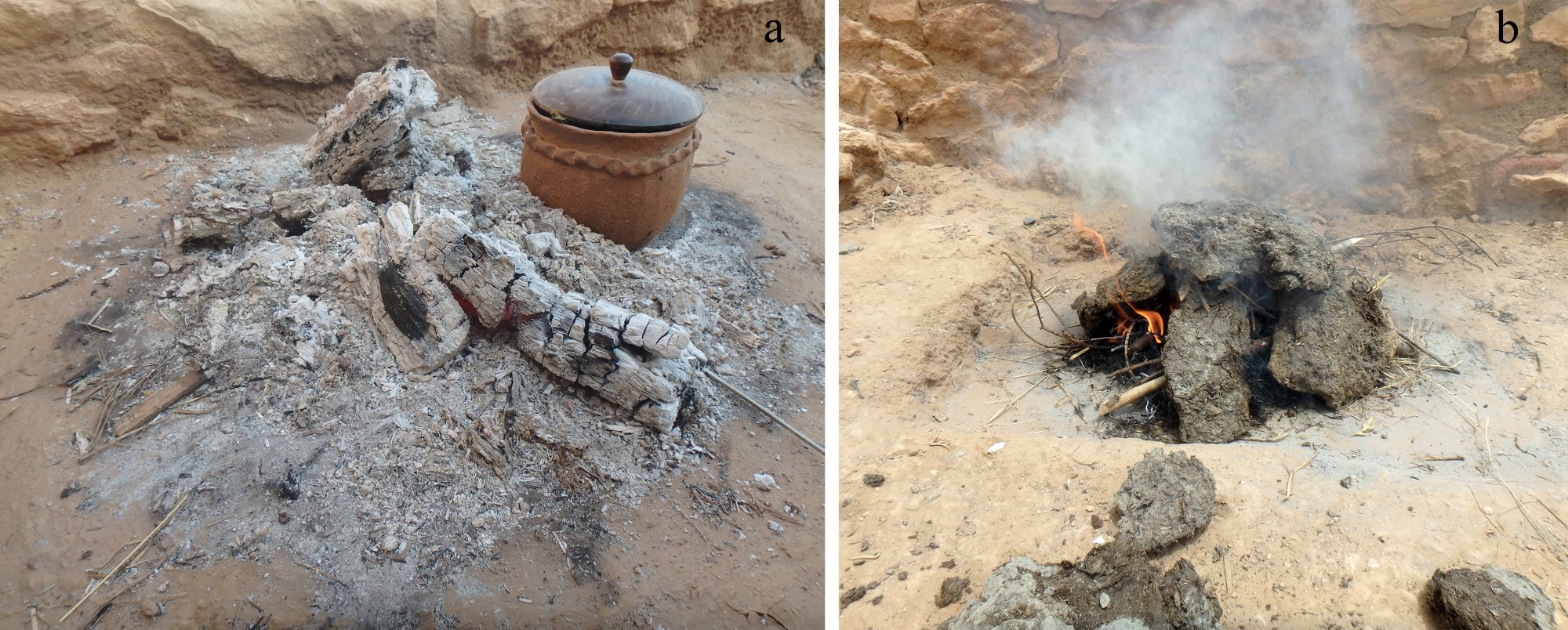

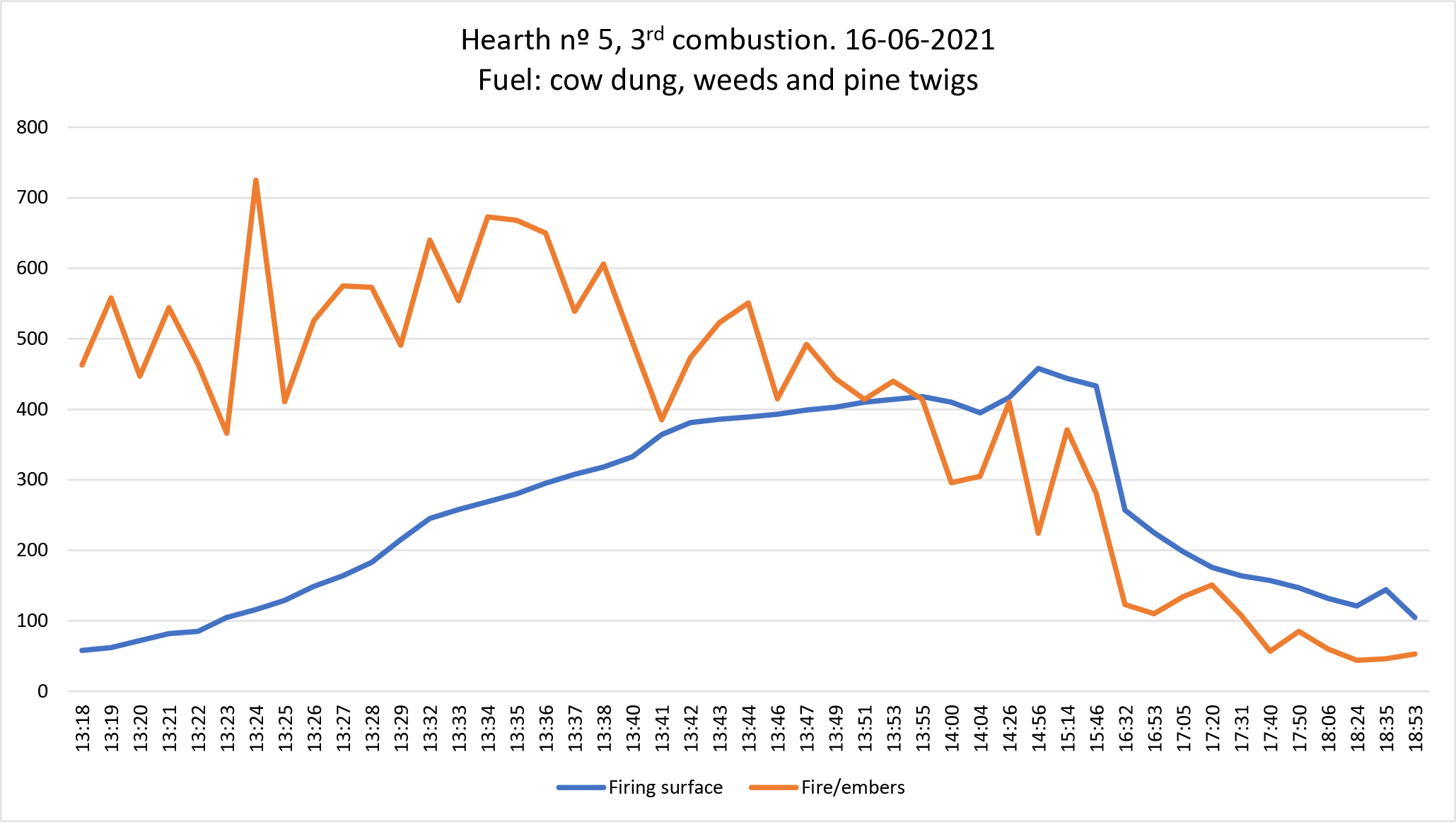

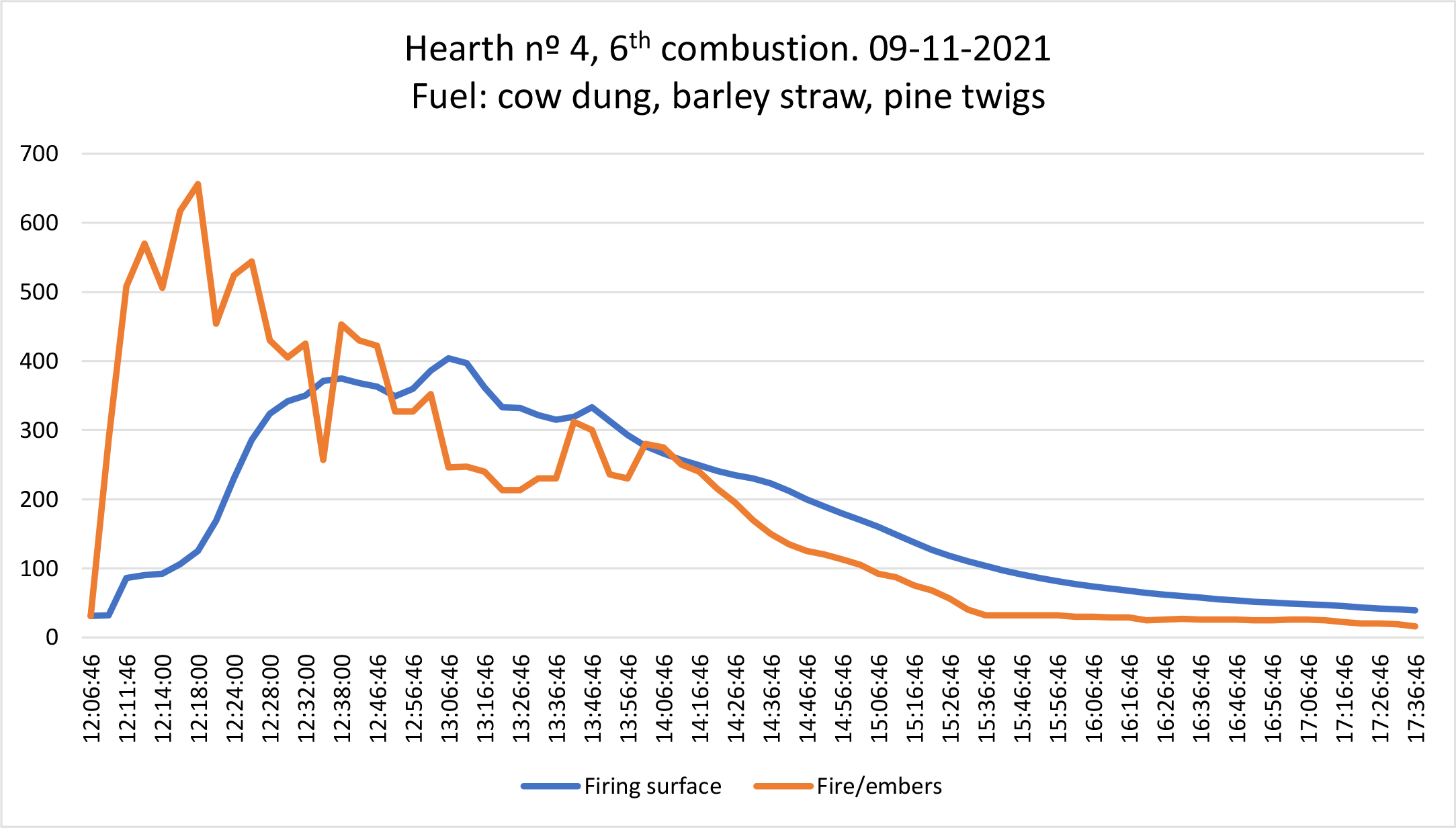

Animal dung (that of both cow and sheep have been tested) has excellent properties as a fuel source since it can burn for longer than wood when it is completely dried. However, generally speaking, the temperatures of the combustion surfaces are not as high as when wood is used as fuel. Also, the climatic conditions, especially the relative humidity, clearly affect dung properties as fuel. The results of burning dung in June or in November were different in terms of temperatures reached or stability of fires (See Figure 11a and 11b), due to different weather conditions. In November, the weather was rainy during the previous week and also during the experimental works. RH was 75%, and the medium temperature was 14.1 °C (compared to 59% of RH and 30 °C most of the days in June)3 . As a result, if the dung was not dry enough, it was difficult to reach temperatures as high as those obtained with wood. As an example of this, it was not possible to get water to boil after hours of combustion using fuel in a hearth built indoors. Comparison of charts 11a and 11b allow to see the different temperatures obtained in the same hearth (Hearth 5, located outdoors) in June and in November, using in both occasions dung as main fuel, with a similar weight and without adding fuel during the combustion.

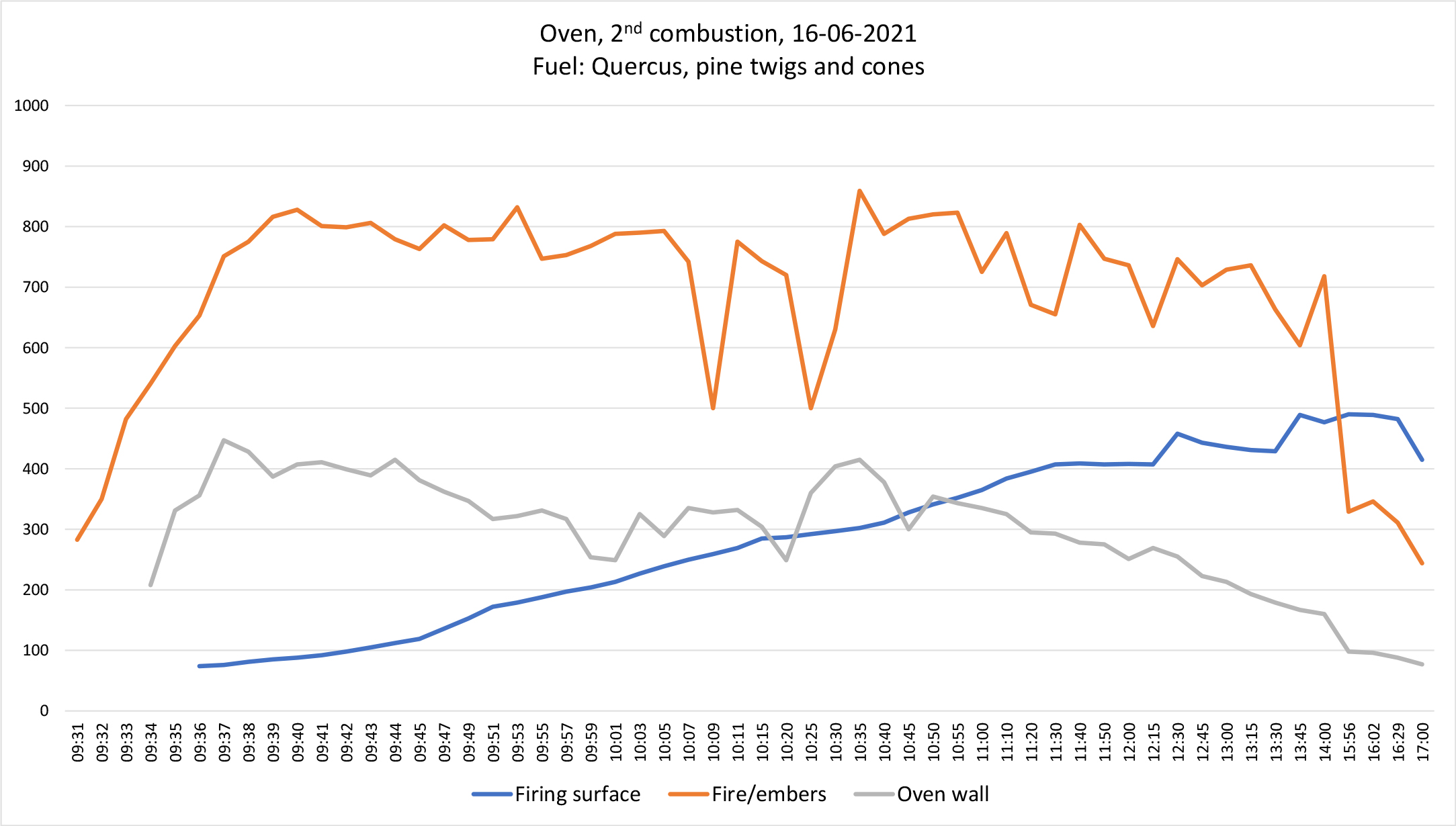

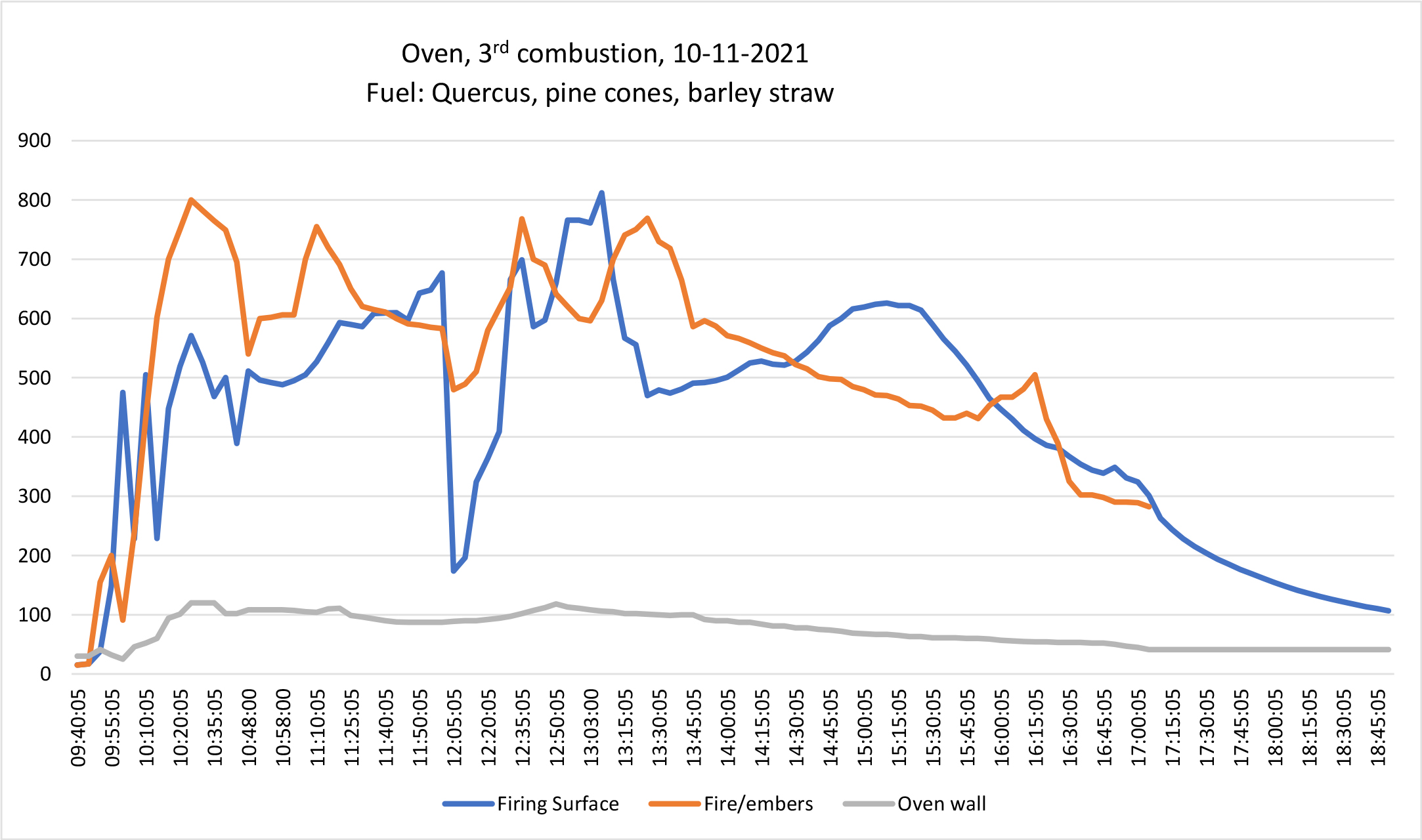

In general, maximum temperatures reached in all the structures were higher in June than in November. This was particularly noticeable in the case of the oven (See Figure 12 and Table 2), that in June reached a temperature as high as 850 ºC whilst in November the maximum temperature was of 760 ºC with wood and slightly over 300 ºC with sheep dung.
Also, in November, we were able to appreciate that on wetter days outdoor hearths did not keep the temperature for as long as indoor structures, using the same fuel type.
The different interdisciplinary analyses (macrobotanical and microfossil analyses, infrared spectroscopy, biochemistry and thin section micromorphology) of the experimental hearths and oven are still in progress, and we expect that the obtained results and the comparison with those coming from archaeological structures will contribute to a better knowledge of the functioning of these installations. They also will allow us to confirm the accuracy of the methodology of study of the archaeological combustion structures.
Systematic records from experimental combustions as conceived and applied within this project are much-needed to deepen the knowledge of construction, use and maintenance of combustion structures, fuel management and use, and activities related to fire installations. This kind of approach, which includes a collaborative network through which diverse specialists such as bioarchaeologists, geoarchaeologists, and staff at an experimental archaeology centre exchange knowledge, has no precedents for this area and period.
Further experimental combustions are still needed to complete the records and refine the interpretations. Nevertheless, the implementation of this project is in itself a significant achievement.
The project was funded by the Spanish Ministry of Science and Innovation (PID2019-104661GB-I00) and supported by the MIRMED-GIAC (ICAC-URV-UAB) Research Group (2017 SGR 970).
We acknowledge the collaboration of the following institutions and people: Ciutadella Ibèrica de Calafell (Tarragona, Spain) archaeological site, Calafell Town Council, Silvia Valenzuela, Eduard Solà, Xavi Cid, Lola Ruiz and Laura Giráldez.
Dr Maria Carme Belarte is an ICREA (Catalan Institution for Research and Advanced Studies) Research Professor based at the Catalan Institute of Classical Archaeology (ICAC), Tarragona, Spain. She is a specialist in Iron Age domestic architecture in the Western Mediterranean and is currently leading the TRANSCOMB Project.
Dr María Pastor Quiles is a postdoctoral researcher holding a Juan de la Cierva-formación contract at the Catalan Institute for Classical Archaeology (ICAC) of Tarragona, Spain. Her main line of research focuses on Pre- and Protohistoric building materials and techniques.
Dr Marta Portillo is an environmental archaeologist at the Spanish National Research Council (IMF-CSIC). She is a specialist in phytoliths and calcitic dung microfossils in integration with geoarchaeological methods, as well as with experimental and ethnoarchaeological approaches.
Dr Marta Mateu Sagués is an associate researcher at Catalan Institute for Classical Archaeology (ICAC) of Tarragona, Spain. She is a micromorphologist, specialising in the application of micromorphology to archaeological sites and earthen constructions.
Carme Saorin is a PhD candidate at the University of Barcelona; she is a specialist in the study of Iron Age combustion structures through geochemical analyses (FTIR, XRD).
Dr Alessandra Pecci is a professor at the Department of History and Archaeology, University of Barcelona, member of the ERAAUB research group (SGR 2017-845, thanks to the Generalitat de Catalunya), the INSA-UB and the IAUB; she is an archaeologist specialising in archaeometry and food practices, particularly in the organic residue analyses.
Sílvia Vila is an associate researcher at the University of Lleida; she is an archaeologist specialising in anthracology.
Josep Pou is a historical heritage technician at Calafell Town Council (Calafell, Spain), he is a specialist in Iron Age Iberian archaeology and in experimental archaeology.
Georgina Castells is an assistant in technique for heritage dynamization at Calafell Town Council (Calafell, Spain), she specialises in Iron Age Iberian archaeology and in experimental archaeology.
Jordi Morer is an archaeologist at the company Món Iber ROCS, with specific interests in Iron Age archaeology, earth architecture and experimental archaeology.
Joaquín Fernández is an associated researcher at the Autonomous University of Barcelona examining the Neolithic combustion structures of the Barcelona area.
- 1Two pyrometers Data Logger Hibok 18, and one pyrometer TM-934S.
- 3Data from the meteorological station located at Cunit, 5 km from Calafell. Source: Catalan Service of Meteorology (www.meteo.cat).
