A Preliminary Attempt to Reconstruct some Tools and Techniques of Ornamentation of the Comb-Pit Ware from the Site of Hepojarvi (Karelian Isthmus, Leningrad Oblast, Russia)

Persistent Identifier
https://exarc.net/ark:/88735/10421
Alexander Akulov (RU)
Printer Friendly, PDF & Email

The site of Hepojarvi is located on the northern coast of Hepojarvi lake, near Saint Petersburg, Russia. The site is a multi-layer settlement with different types of Neolithic pottery (from Sperrings to late Comb-Pit Ware); the settlement functioned in 5314 cal BC – 2342 cal BC. It was excavated in 1978 by I. V. Vereschagina. The aim of the current paper is to reconstruct some concrete tools and techniques of ornamentation which were used by the Neolithic people who lived in the settlement. Attention is focused on Comb-Pit Ware. It seems that there were very different techniques of ornamentation, some ornaments were made by ropes, some were made by knife-like stone tools, some were made by shell stamps with teeth; some seem to have been made by fish backbones, and techniques of some ornaments still remain unclear.

The simplest elements are the most obvious in technique, and so starting from the reconstruction of these basics, it is possible to step by step reconstruct the whole system of ornamentation technique.

Introduction

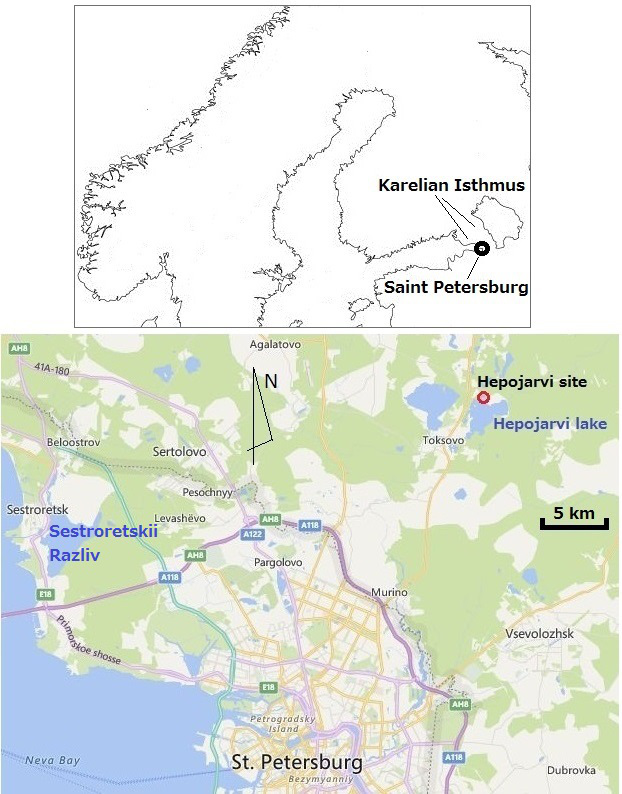

The site of Hepojarvi is located upon the northern coast of Lake Hepojarvi (See Figure 1).

The site was discovered in 1978 by school children of the 94th school of the Vyborg district of Leningrad during a thematic hiking trip under the guidance of their teacher, V. M. Sokolov, the head of the archaeological circle that existed in the school. A report about discovering some stone tools and pottery were immediately sent to the Leningrad Department of the Institute of Archaeology of USSR (now the Institute of Material Culture History). The site is located in a popular recreation area, and the location was regularly visited by hikers and fishermen, so in order to prevent potential destruction of the site, excavations were started in the same year as discovery (Vereschagina, 2003, p.140).

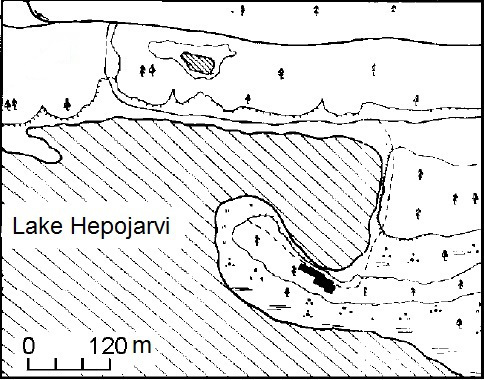

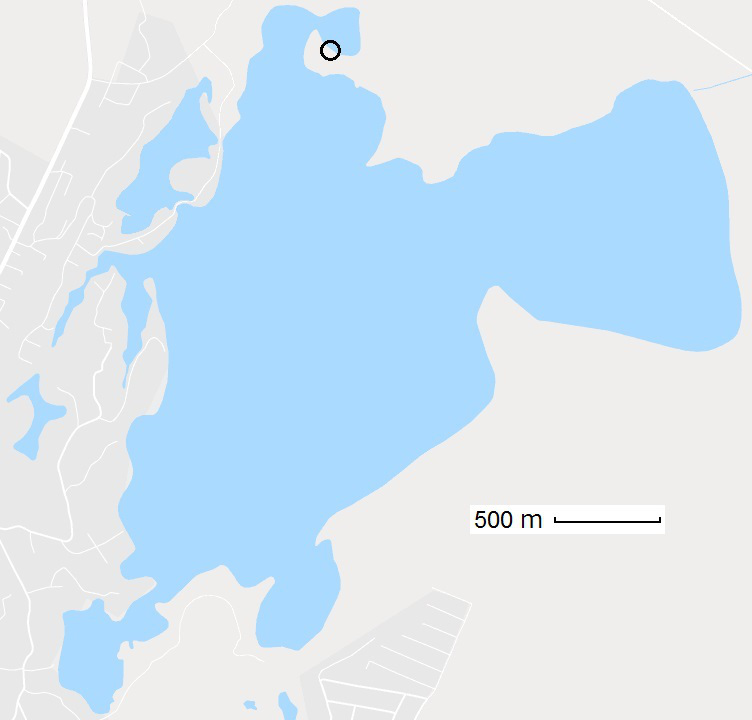

The coast of Lake Hepojarvi in this area is rather mountainous, with almost no convenient flat areas where a settlement could be located. There is a rather narrow peninsula at the northern part of Lake Hepojarvi. The width of the peninsula varies from 7m to 40m., with a length of about 250m. In the northern part of the feature, the terrace steeply descends to the water, while from the southern and eastern sides, it gradually descends into a marshy lowland. The settlement discussed here was located on the flattest part of the terrace, about 100m from its northern edge (Vereschagina, 2003, p.140); see also Figures 2 and 3.

It seems that in the period when the settlement existed (5314 cal BC – 2342 cal BC) the sea level was two to five meters higher than the present day (Yu, 2003) cutting off the peninsula from the mainland, meaning that then, the settlement was effectively on an island. It is possible to conclude that the place was an ideal location for establishing a settlement in this area, as the insular landscape protected the inhabitants from outside threats (See Figure 4). The settlement was dated by charcoal from a fireplace with different layers (Vereschagina, 2003, p.149).

The Pottery from the Site of Hepojarvi

The settlement site was host to different technocomplexes1, and different layers actually were not separated. The territory was inhabited in the early Neolithic period - this is corroborated by finding of a large amount of so-called Sperrings2 pottery and also by radiocarbon dates. Vereschagina suggested that the habitation site was repeatedly settled by different ethnic groups (Vereschagina, 2003, p.149). However, caution is required here, as we cannot automatically presume that each variant of the Pit-Comb Ware technocomplex appeared due to a new ethnic group. Of course, there were migrations and mixing, but as far as the tradition of the Pit-Comb Ware was generally maintained, so it may not be entirely correct to presume population shift.

The closest analogy to the Hepojarvi site are Neolithic sites found in the coasts of Sestroretskii Razliv (See Figure 1) and in the southern part of Karelian Isthmus (See Figure 1) (Gurina, 1961, pp.415–438).

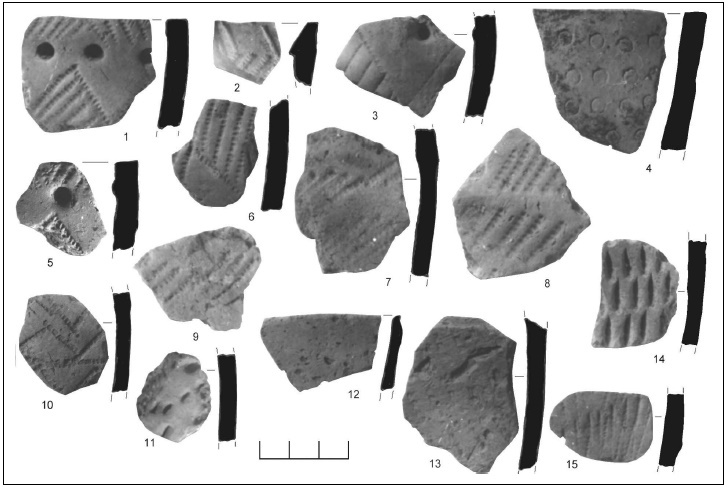

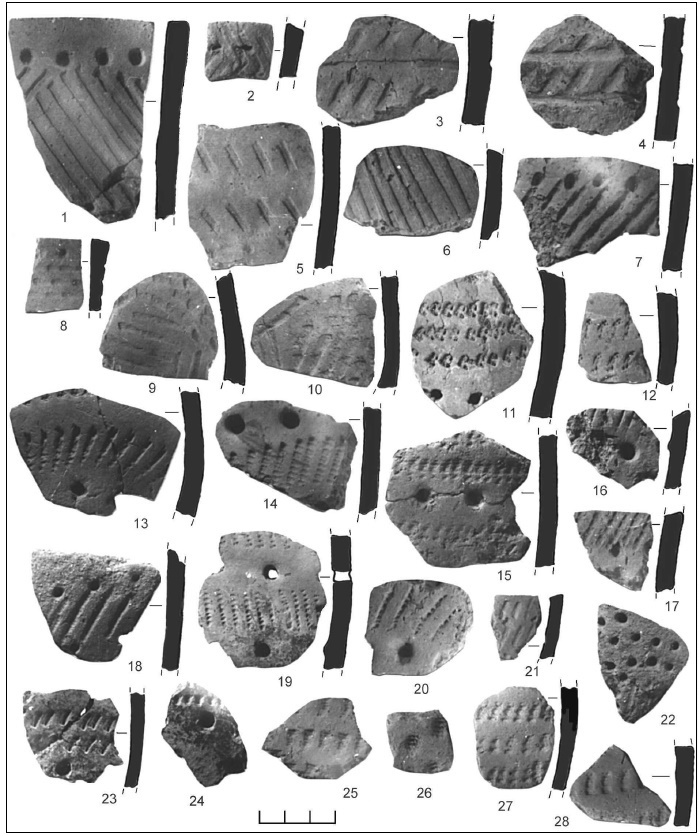

The pottery of the Hepojarvi site is represented by Sperrings pottery (See Figure 5: 1 – 12) and by Comb-Pit Ware (See Figure 5: 13 – 28 and Figure 6); both are actually variants of the Pit-Comb Ware.

Vessels with Comb-Pit ornament form the largest group of pottery of the site. These vessels are usually quite large and have a rounded bottom. The walls are straight or slightly convex. In the clay there is an admixture of a rather coarse grus; only in some cases there is an admixture of fine grus with a large amount of mica. The surface, both external and internal, of the majority of vessels is well smoothed; however, several fragments can be seen with engravings on the inside (Vereschagina, 2003, p.146).

The ornament covers the entire surface of the vessels, and in most cases, the cut of the corolla. Comb elements observably dominate in the ornament. Varied comb stamps were used, long and short, narrow and relatively wide, straight and curved, with straight and with slanting teeth (See Figure 5: 13 – 28; See Figure 6: 1 – 3, 5 – 9). In some cases, a rope stamp was used instead of a comb (Figure 5: 18, 24, 25, 27, 28).  On one fragment, there were oval impressions with small teeth on the bottom (See Figure 5: 26).

Pit elements also are very diverse, of large and small diameters, shapes ranging from rounded, oval, four-square and other irregular outlines, drawn at an angle or vertically. (Vereschagina, 2003, p.146)

In most cases, the pits are relatively shallow and have a rounded or uneven bottom. Only a few fragments have deep round-conical pits with corresponding hillocks on the inside of the vessel (See Figure 5: 13 – 24; Figure 6: 1, 3, 5) (Vereschagina, 2003, pp.146–147)

Most often motifs are simple patterns with horizontally alternating belts made of slanting imprints of comb or rope stamps and pits, which had a separating character (See Figure 5: 13 – 28). More complex motifs (triangles and rhomboids filled by comb imprints, flag ornament, diagonal motifs made of the same imprints, horizontal zigzag) also are very characteristic (See Figure 6: 1 – 3, 5 – 8) (Vereschagina, 2003, p.147).

Patterns made by other elements (horizontal belts of deep notches; zigzags or herringbone made of small fossa imprints in combination with comb and pit motifs) are less common (Vereschagina, 2003, pp.147–148).

A small group of ceramic samples is represented by fragments with porous clay structure or with a combined admixture of organic and some grus (See Figure 6: 10 – 15). Most of these fragments have no ornament and are of poor quality (Vereschagina, 2003, p.148).

Reconstruction of some Tools and Techniques of Comb-Pit Ware Ornamentation

In an attempt to reconstruct the technique of ornamentation it is important to keep in mind the fact that the same imprints can be made by different tools. Thus, the main issue of reconstruction is to try to reconstruct those tools which most probably were used by the people created the pottery.

The simplest elements are the most obvious in technique, and so starting from the reconstruction of these basics, it is possible to step by step reconstruct the whole system of ornamentation technique.

Moving to the samples of Comb-Pit Ware (See Figure 5: 13 – 28; Figure 6: 1 – 9).

  • Pit elements should be considered as the easiest. They can be created by any small stick made of wood or bone.
  • Round imprints (See Figure 6: 4) appear to have been made by a tube, probably made from a bone.
  • Triangle imprints (See Figure 5: 25) were evidently made by a stick with a triangular shaped profile.

However, there are elements which are less obvious. That is why I made some attempts to reproduce the processes of ornamentation by experimenting on pieces of clay.

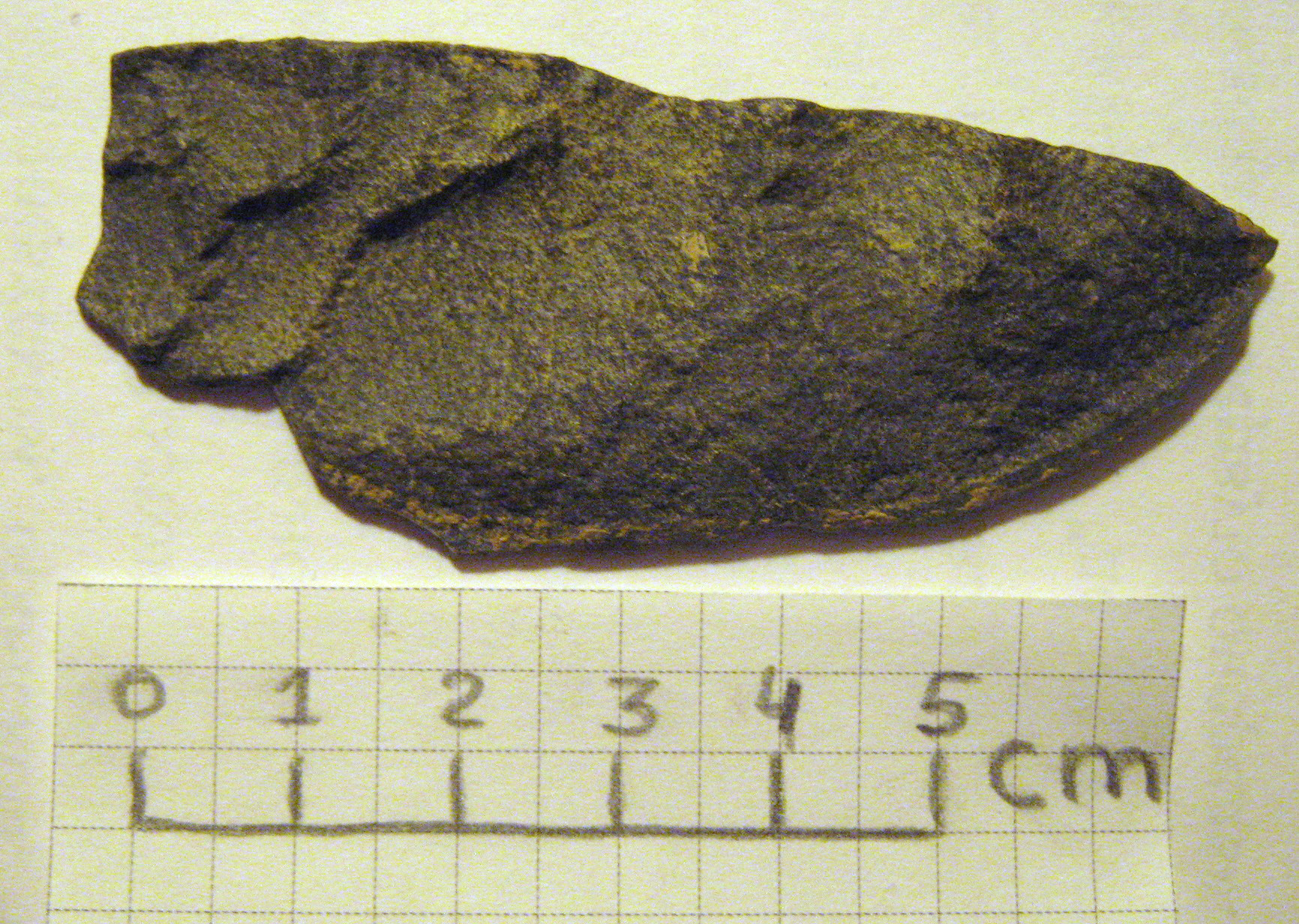

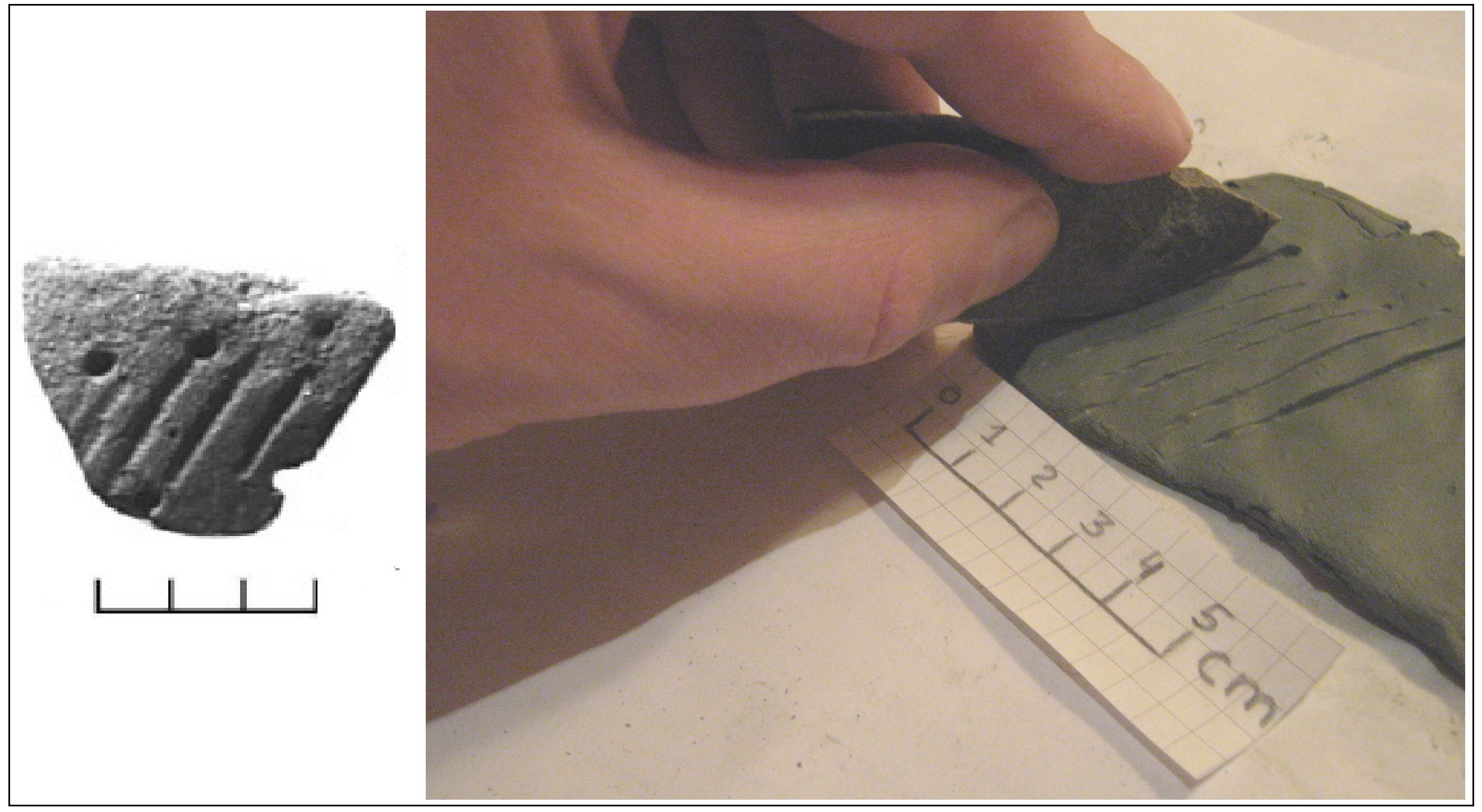

  • Ornament of straight lines (See Figure 5: 18) can be made by a stone tool like a knife (See Figure 7 and Figure 8).

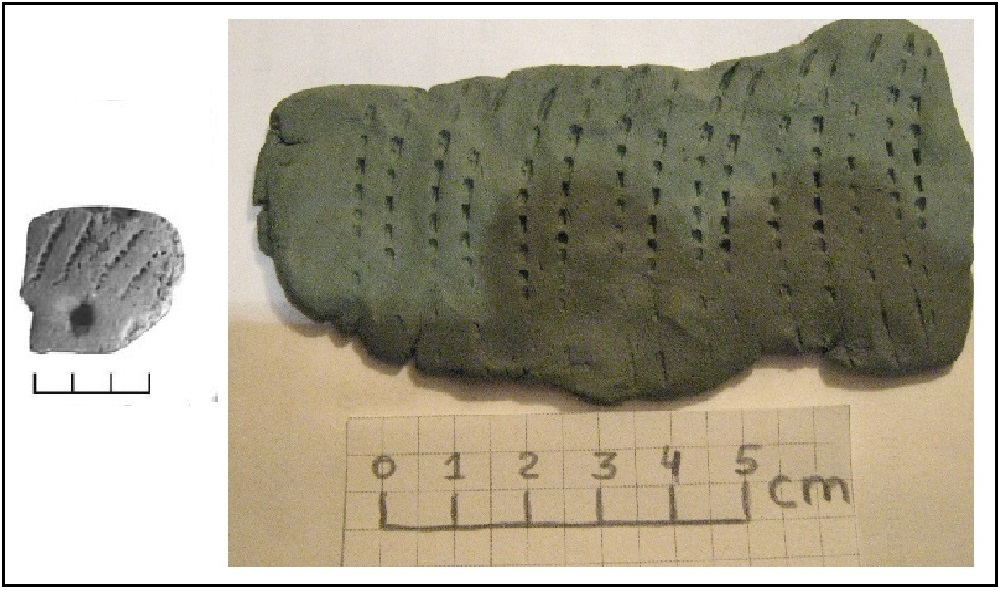

  • So-called ‘comb’ designs were often made by rope imprints. See for instance Figure 9  which illustrates how the ornamentation represented on samples 14, 19 (See Figure 5) was made.

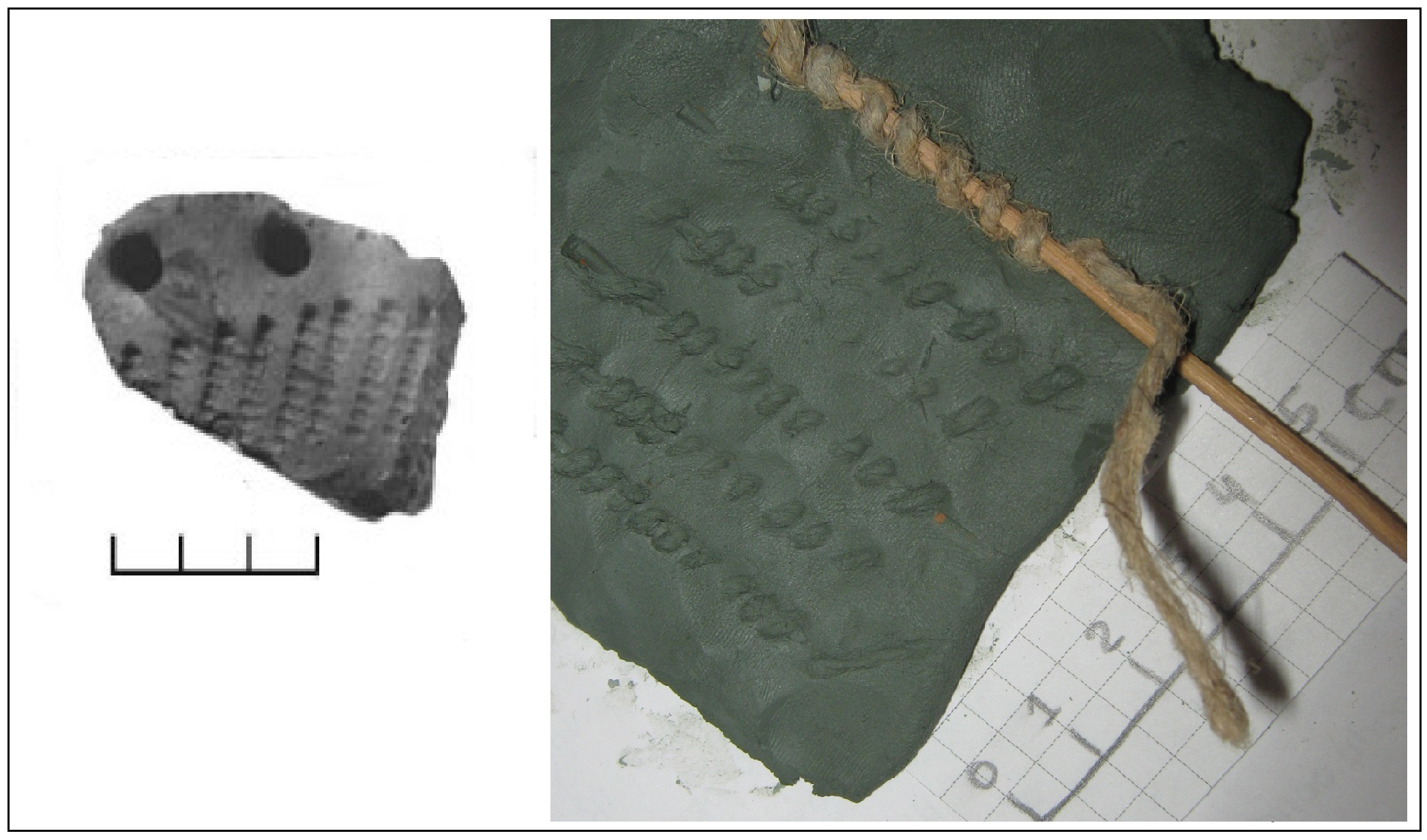

  • Another way to make a comb ornament is to twist a rope around itself and use the resulting item as a stamp (See Figure 10).
    Such comb ornament made of twisted rope also can be seen at samples 15 and 28 (See Figure 5).

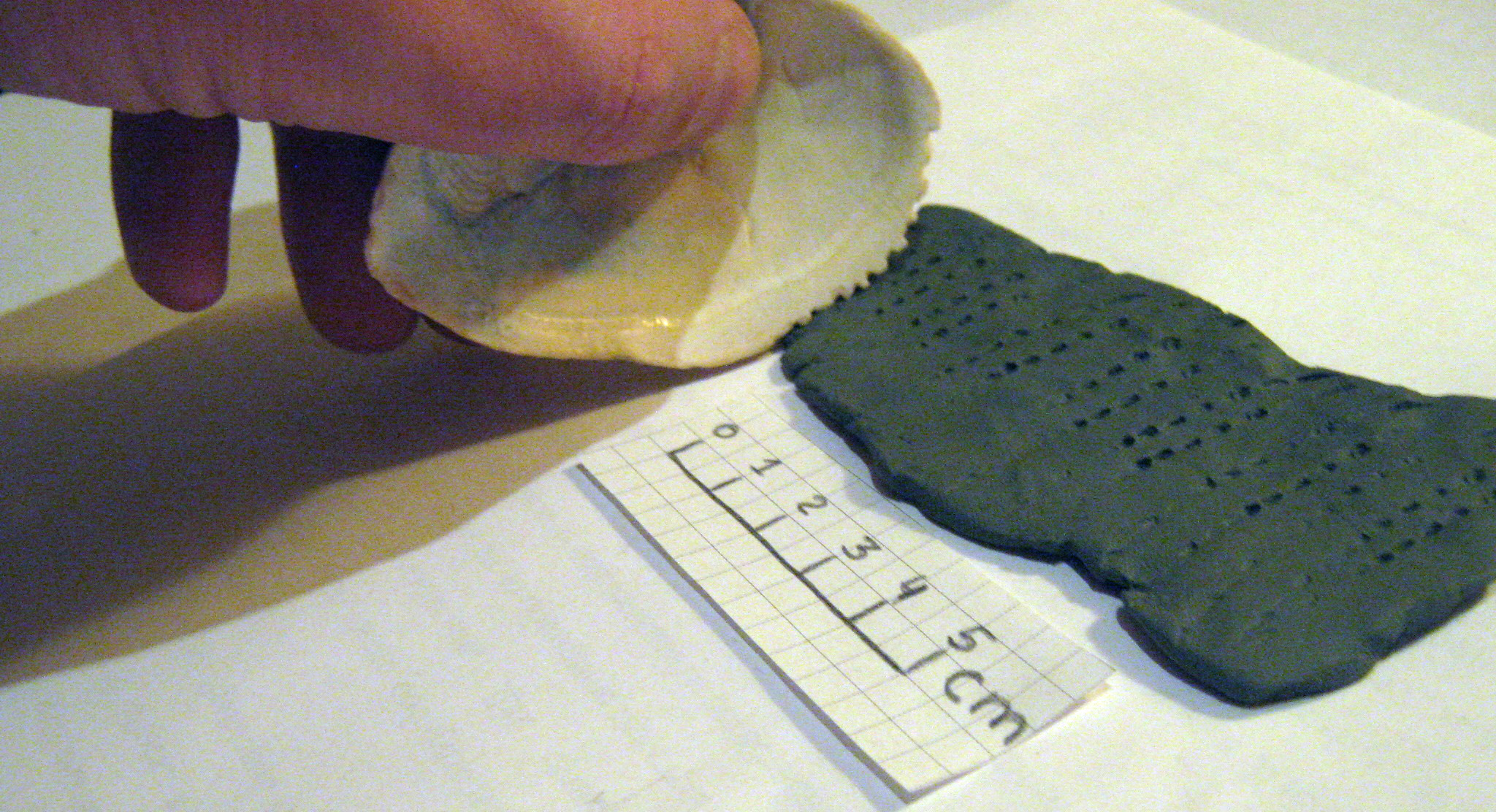

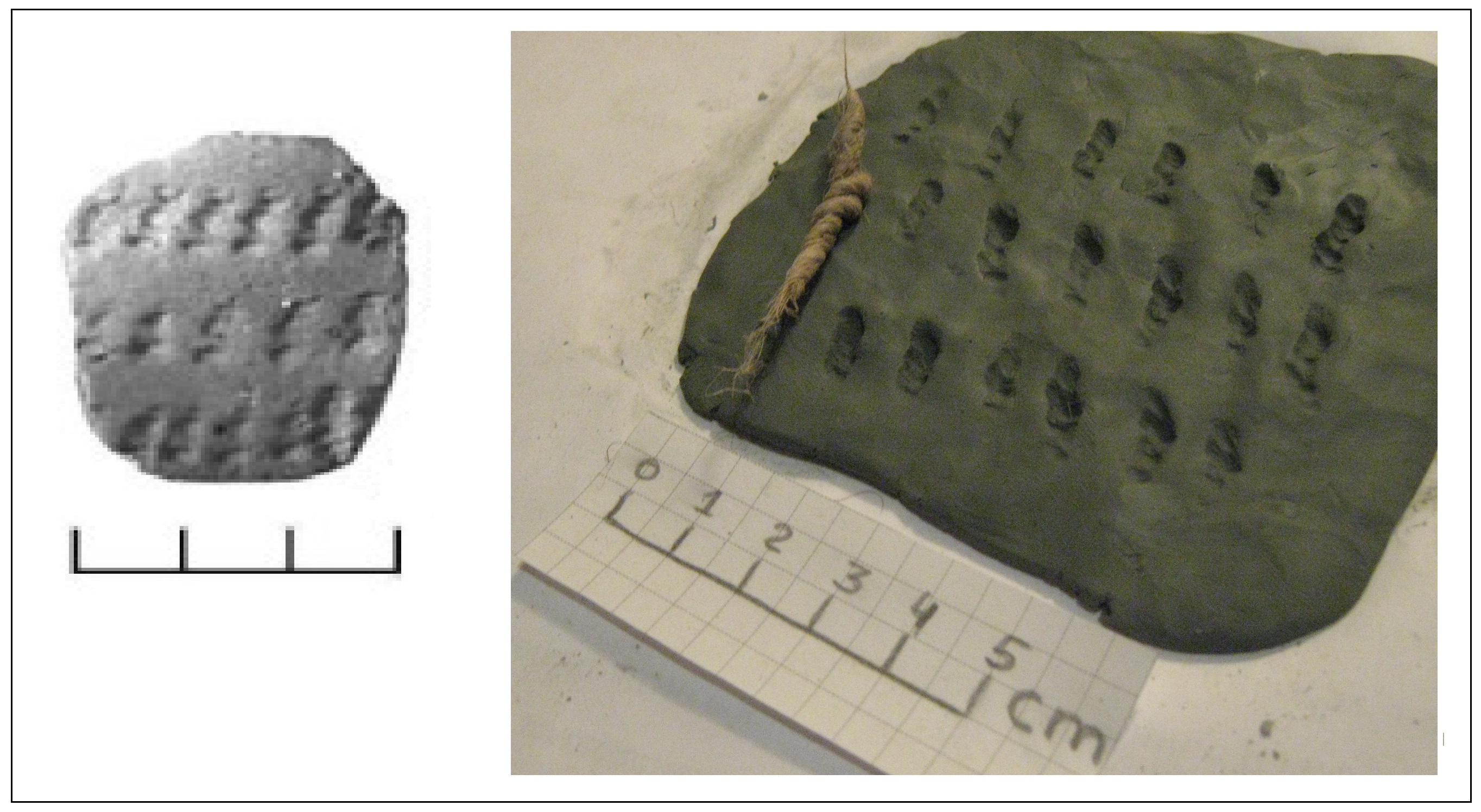

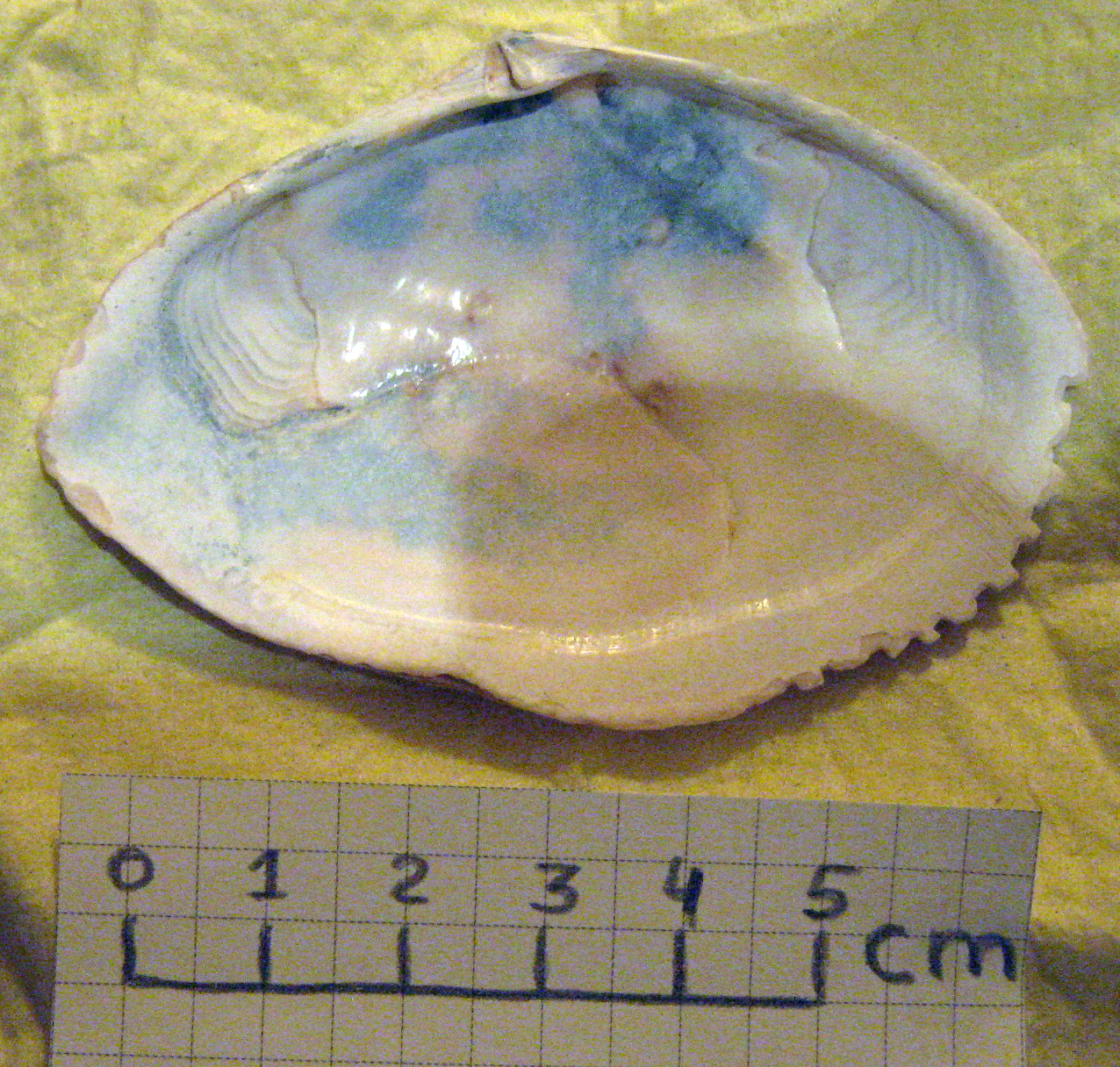

In some cases, stamps were used. An interesting issue is the decorative ornamentation represented on sample 20, Figure 5 (See Figure 11). Due to the curvature of its line, it is possible to conclude that it was made by a curved stamp. It seems to be highly possible that the stamp itself was made of a shell (See Figure 12 and 14). It is natural to suppose that people who lived on a lake would re-use shells.

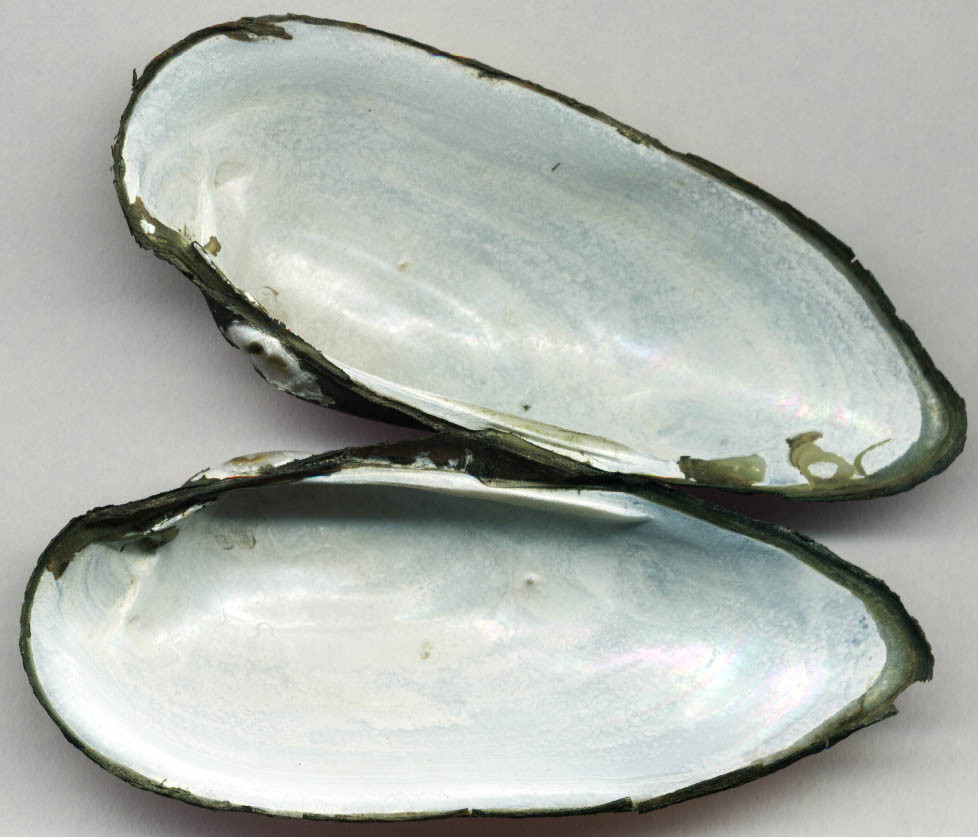

The shell which was used was that of a sea mollusk, and not that of a freshwater mussel. It is probably a Soft-shell clam (Mya arenaria) that is spread rather widely almost in all oceans and seas (for more details see: Wikipedia, 2018). However, since its shape does not differ greatly from that of Painter's mussel (Unio pictorum) (See Figure 13) that could be used by people who lived upon the lake, we considered that it was not a big mistake to use this shell instead of Painter's mussel. It is likely that people who lived upon the lake could obtain shells from the seashore, since the lake was not far from the Littorina sea.

In this short paper I paid attention only to some samples of pottery from the site of Hepojarvi, and some samples will be a matter of further consideration.

Ornamentation techniques of some samples are rather unclear yet, especially the ornaments of samples 1, and 6 – 10 (See Figure 6), which seem to be made by fish backbones. Also, the ornamentation technique of sample 13 (See Figure 5) is rather unclear: it is difficult to currently state whether it was made by a rope or by a stamp.


  • 1. In the current text the term technocomplex is used instead of the widely used term archaeological culture. Technocomplex can be defined as a regularly repeated system of artifacts connected with a certain region. It is much more correct to avoid using the term culture for there would be no associations with cultures which are subjects of cultural anthropology. It is important to keep in mind that not every technocomplex is a culture, or, in other words, not every technocomplex assumes its own ethnic component.
  • 2. So-called Sperrings pottery is the original name given for the younger early Comb Ware (about 5th – 4th millennia BCE) that was found in Finland and in Karelia. It is usually considered as a technocomplex separated from the Pit-Comb Ware in Russian archaeology, but in Western archaeology Sperrings pottery is considered as an early stage of the Pit-Comb Ware. The site of Hepojarvi is rather unusual, since so-called Sperrings pottery was not characteristic for settlements located in Karelian Isthmus especially in its southern part.
Era(s)
Country
Russia

border

Bibliography

Gurina, N.N., 1961. Drevnyaya istoria Severo-Zapada evropeiskoi chasti SSSR (Ancient history of European part of USSR). Materialy i issledovaniya po arkheologii SSSR (Materials and researches on the archaeology of USSR), Vol. 87. Moscow: Academy of Sciences of the USSR.

Vereschagina, I.V., 2003. Poseleniye Khepoyarvi v yuzhnoi chaste Karel’skogo peresheyka (The settlement of Hepojarvi in southern part of Karelian isthmus). In: V.I. Timofeev  and G.V. Sinitsyna, eds. Neolit – eneolit yuga i neolit severa Vostochnoi Evropy (Neolithic – Eneolithic periods of the South of Eastern Europe and Neolithic period of Northern part of Eastern Europe). Saint Petersburg: Institute of Material Culture History Publishing. pp.140–151

Wikipedia, 2018. Soft-shell clam. [online]  Available at: <https://en.wikipedia.org/wiki/Soft-shell_clam> [Accessed 18 December 2018].

Yu, Shiyong, 2003. The Littorina transgression in southeastern Sweden and its relation to mid-Holocene climate variability. [online] PhD. Lund University. Available at: <http://portal.research.lu.se/portal/en/publications/the-littorina-trans…; [Accessed 18 December 2018].
